Our Cut Sheet Package includes fully detailed drawings of each unique timber, providing everything you need to cut and assemble this classic timber frame structure.

Frame Specifications:

• Dimensions: 24' wide × 36' long (outside-of-post to outside-of-post)
• Bay Configuration: Three 12' bays
• Roof Pitch: 12:12 (45-degree angle)
• First Floor: 864 square feet
• Second Floor: 288 square feet with 4' knee walls
• Overall Height: Approximately 24 feet at peak

This versatile design features a classic New England timber frame profile with a steep-pitched roof, making it ideal as a cozy two-bedroom home, spacious guest house, artist studio, workshop, barn, or year-round camp. The open first floor and generous loft create a bright, airy living space perfect for modern living with timeless craftsmanship.

What's Included:

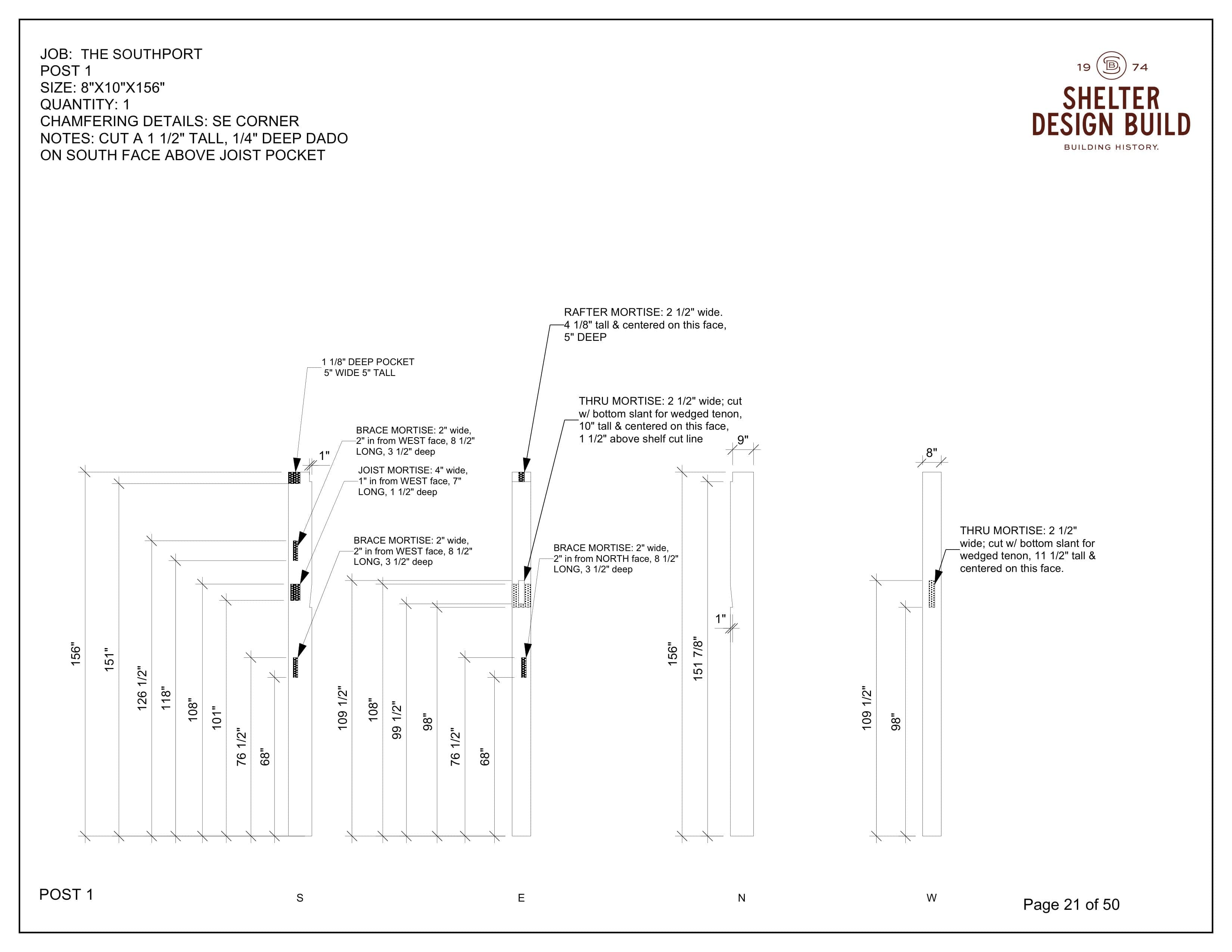

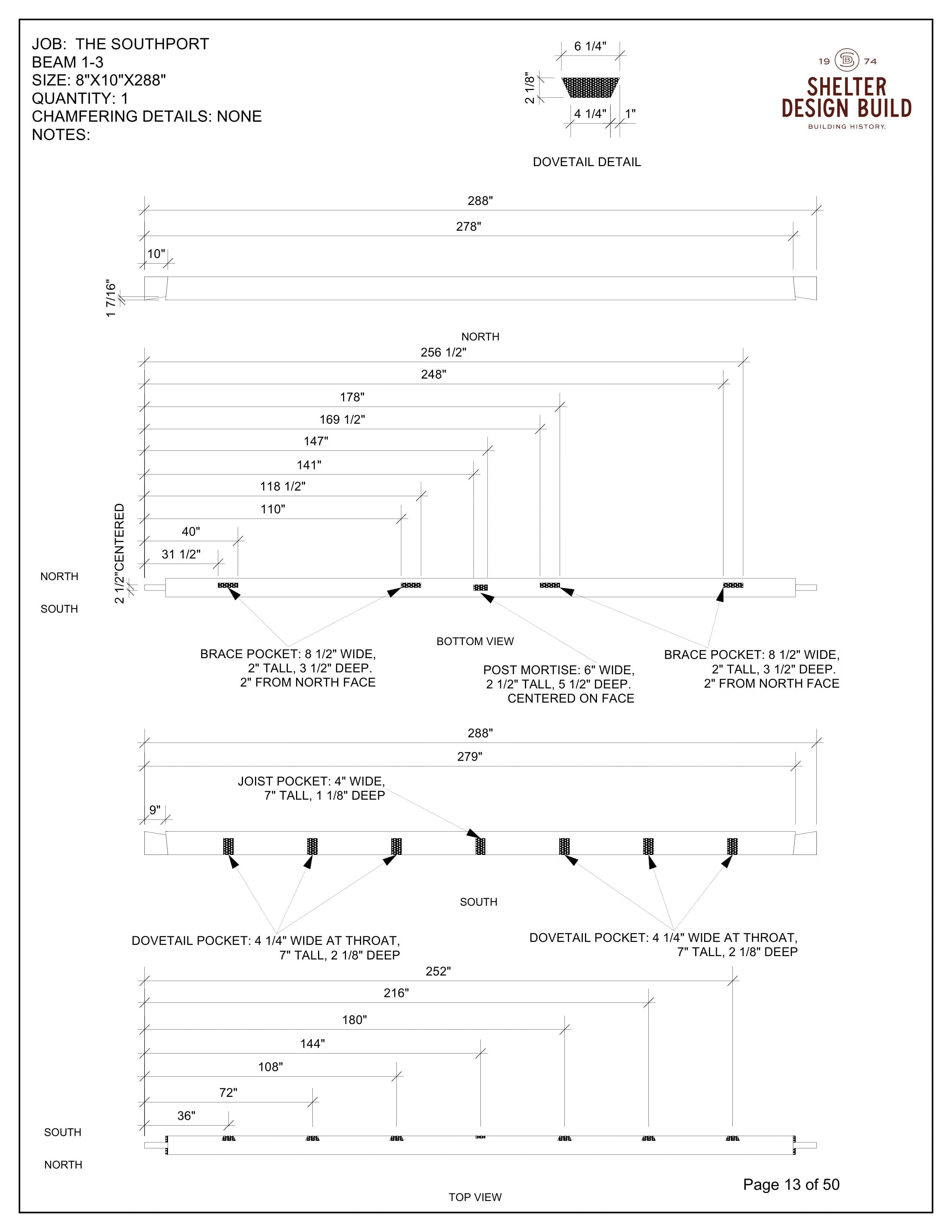

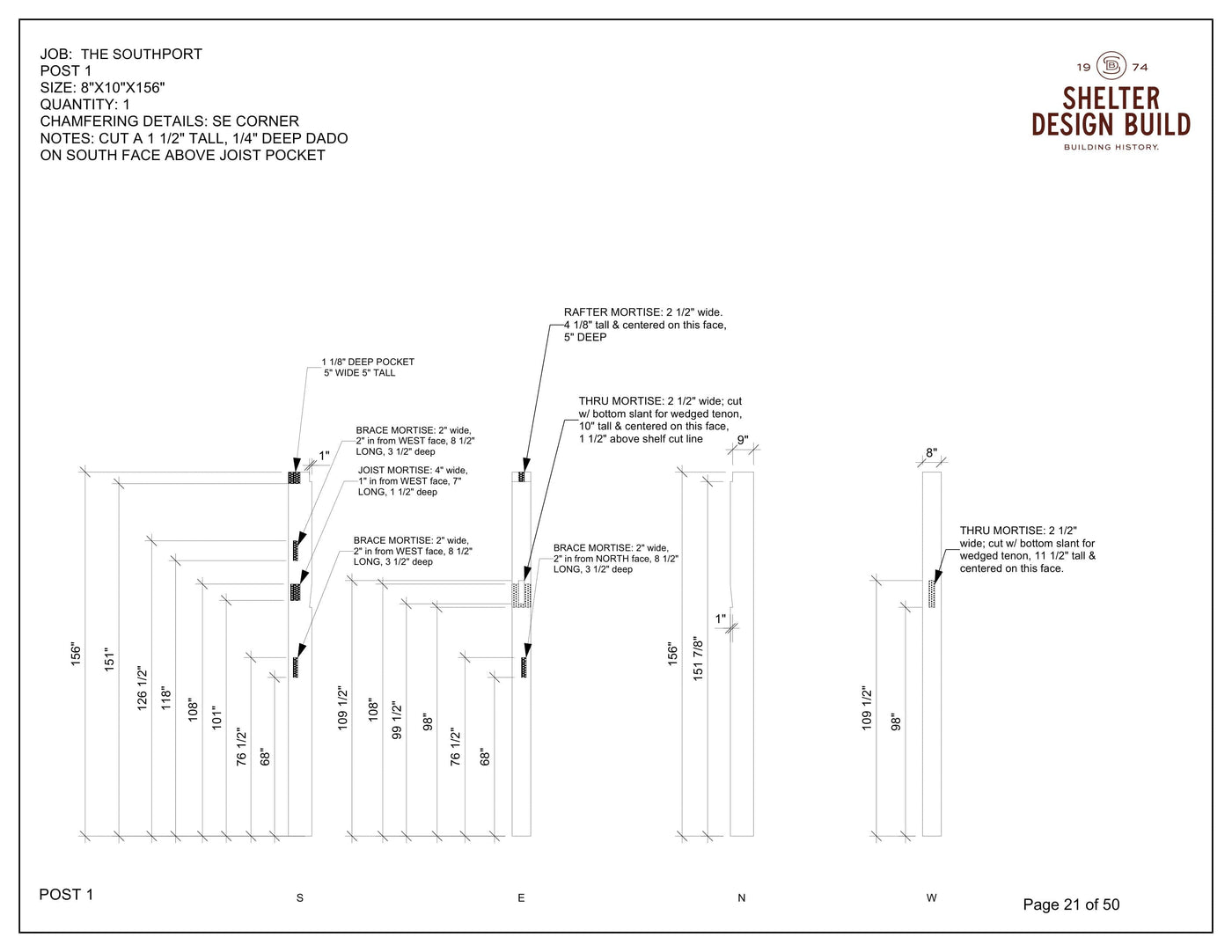

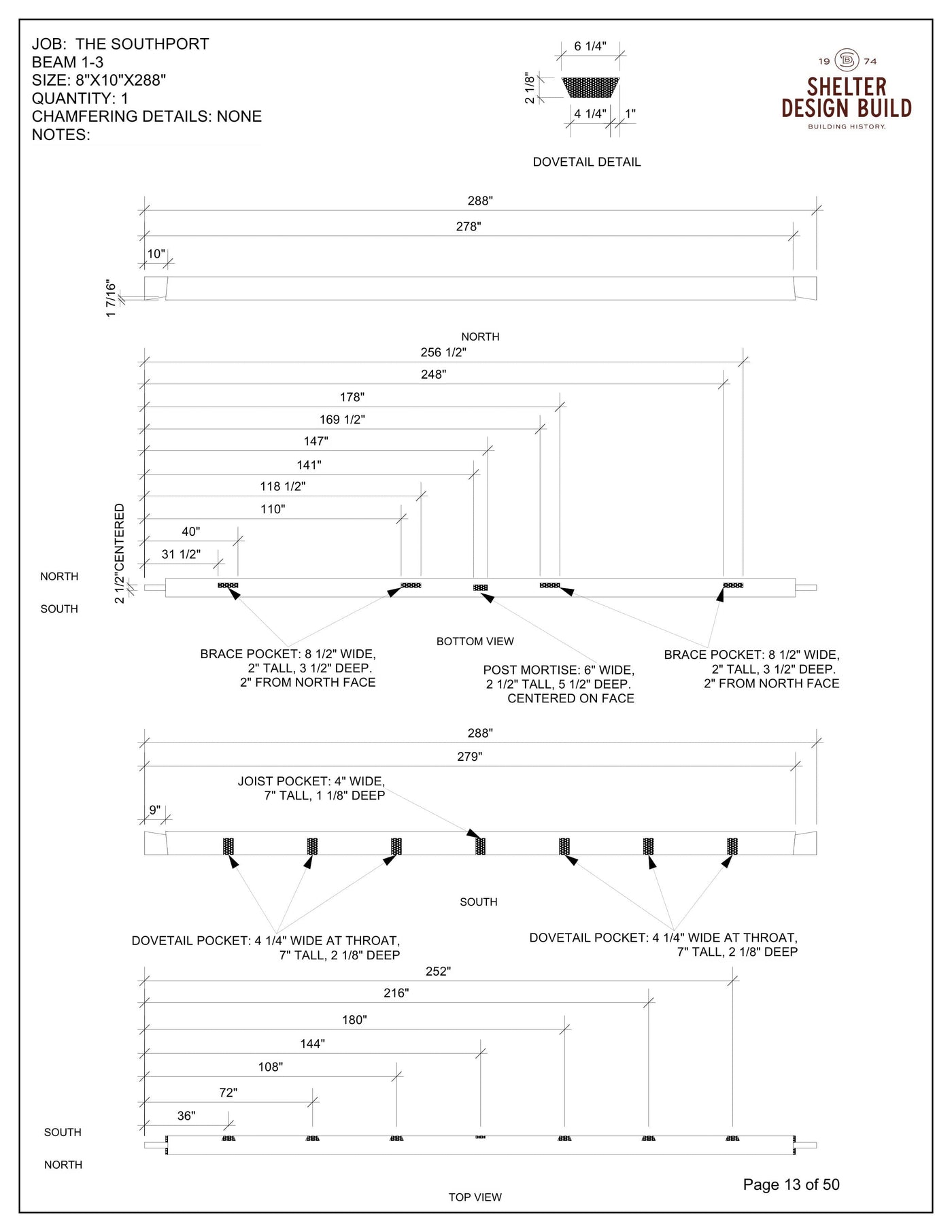

• Detailed cut sheet for each timber with all joinery specifications

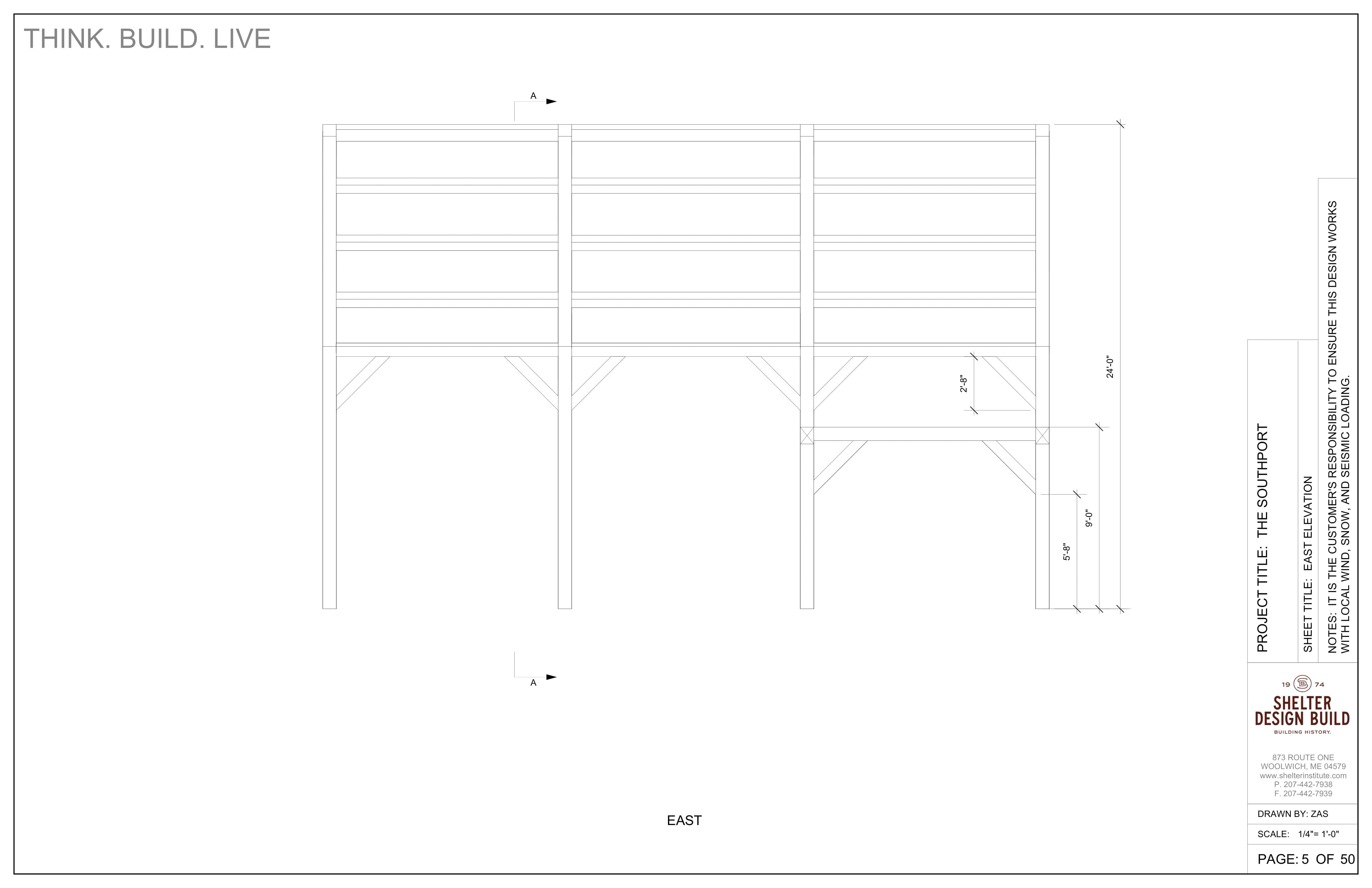

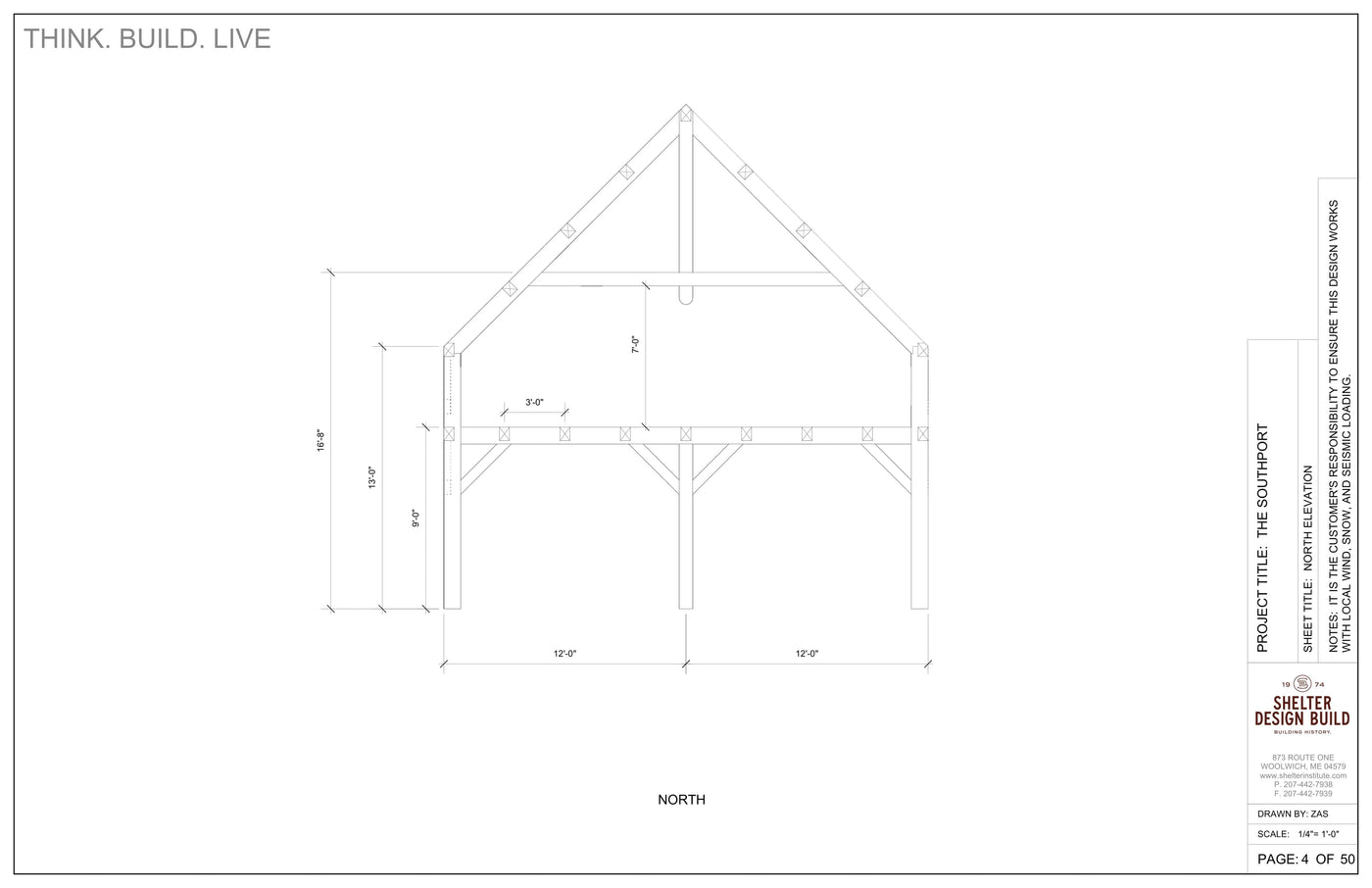

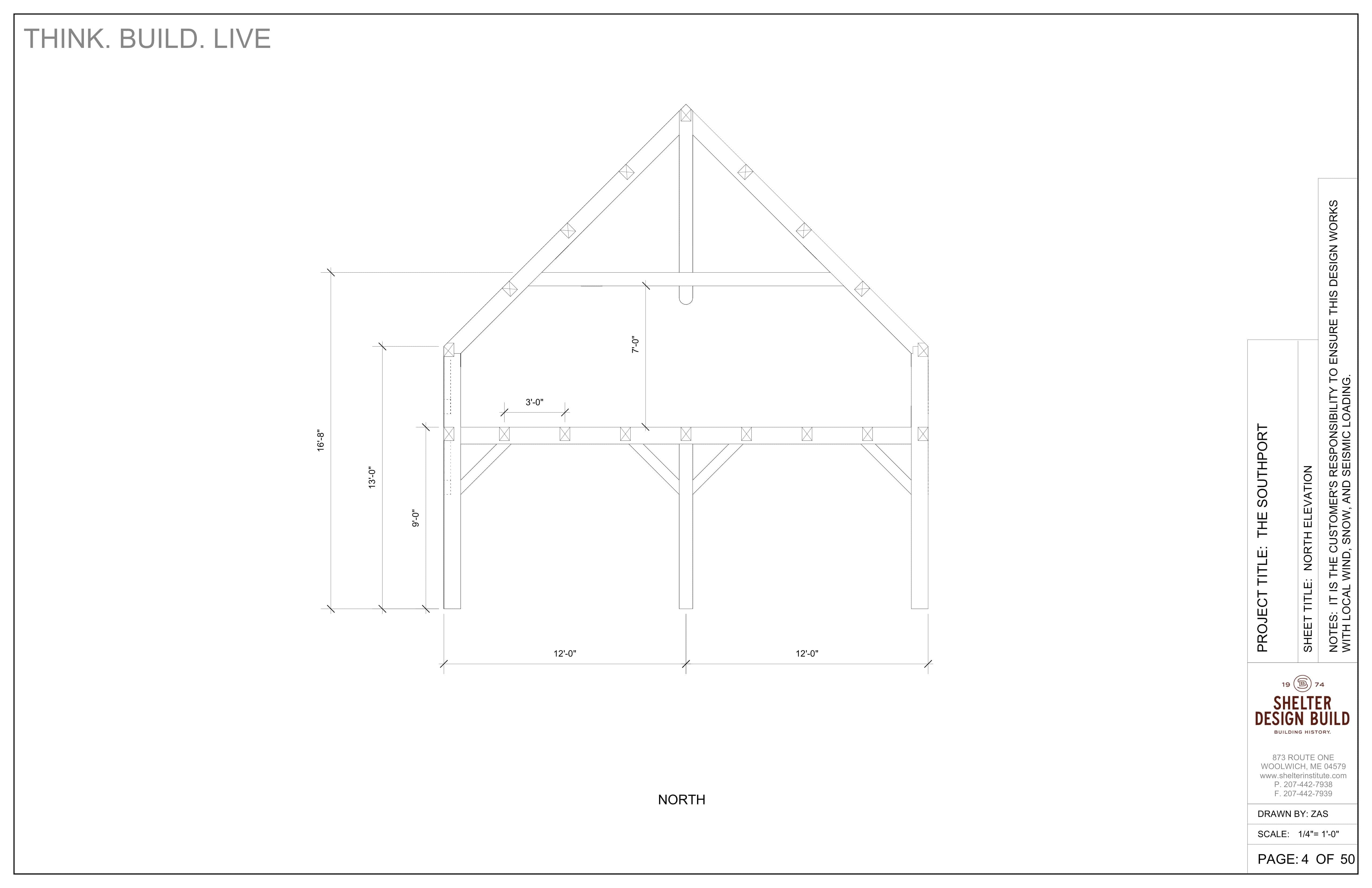

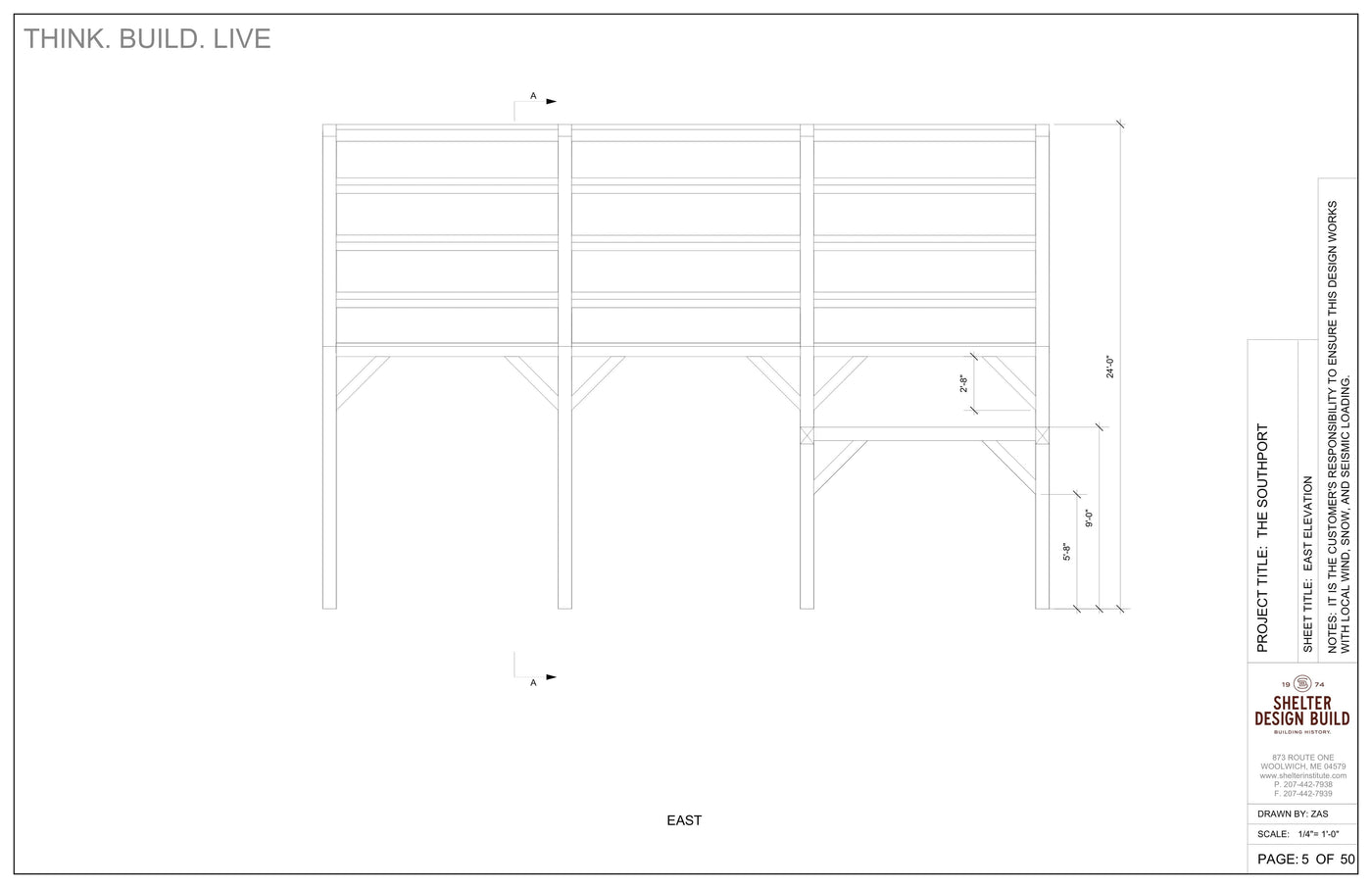

• Elevation framing plans (North, South, East, West)
• Second floor structural plan
• Roof framing plan
• Complete lumber list
• Fasteners list with specifications
• Peg locations
• Cross-section details showing structural assembly

If you've attended one of our in-person classes or completed our online course, you know the level of precision and detail you can expect in this package.

Custom Designs Available: If this building isn't exactly what you're looking for, our design team is happy to create a custom design tailored to your needs.

Delivery: Upon purchase, you'll receive both a PDF for immediate printing and a hard copy via mail.
