Timber Frame Dovetail Layout Jig
Timber Frame Dovetail Layout Jig
Timber Frame Dovetail Layout Jig
Timber Frame Dovetail Layout Jig
Timber Frame Dovetail Layout Jig

Timber Frame Dovetail Layout Jig

From $149.00 $0.00 /
Subscription
Sold Out

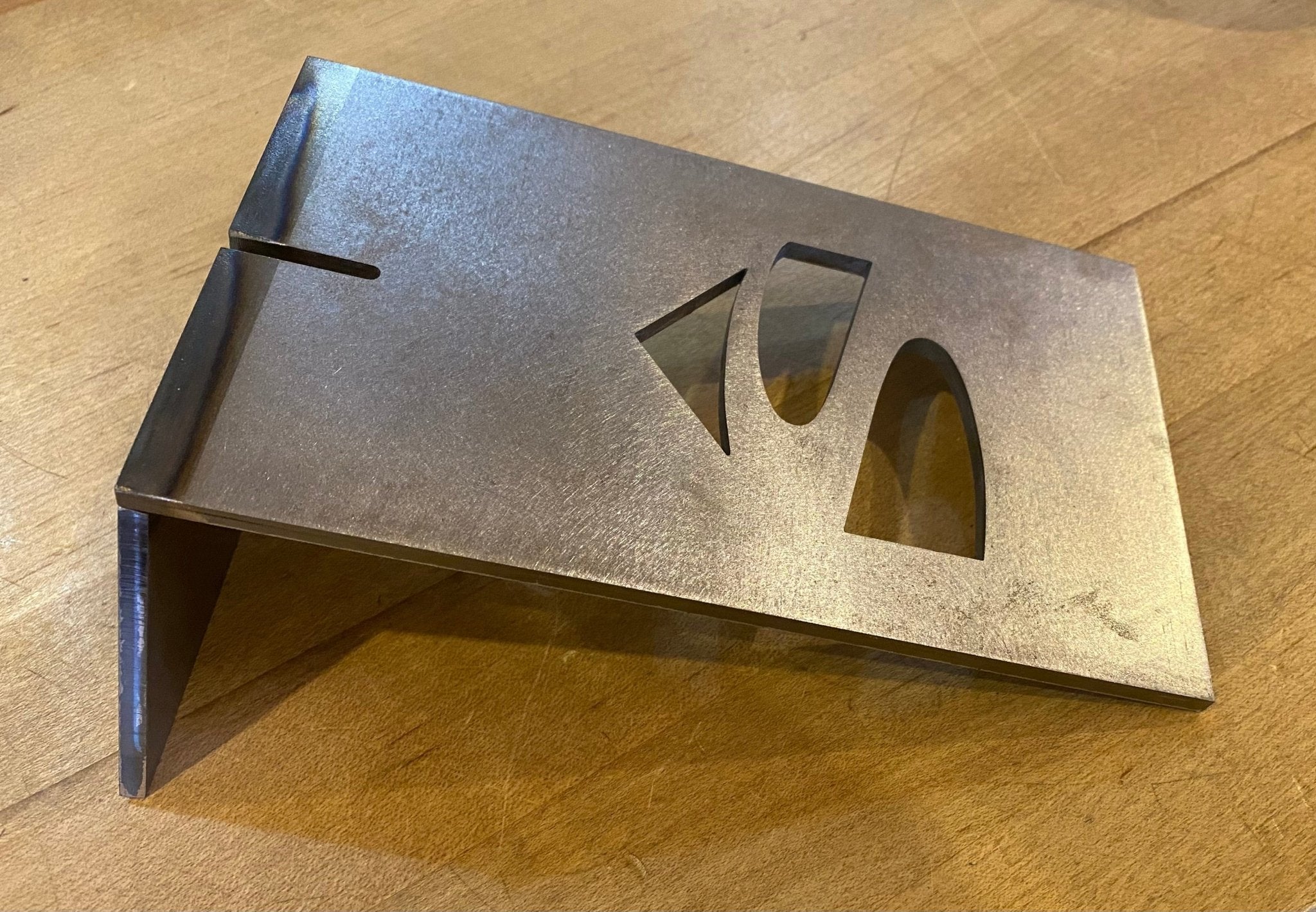

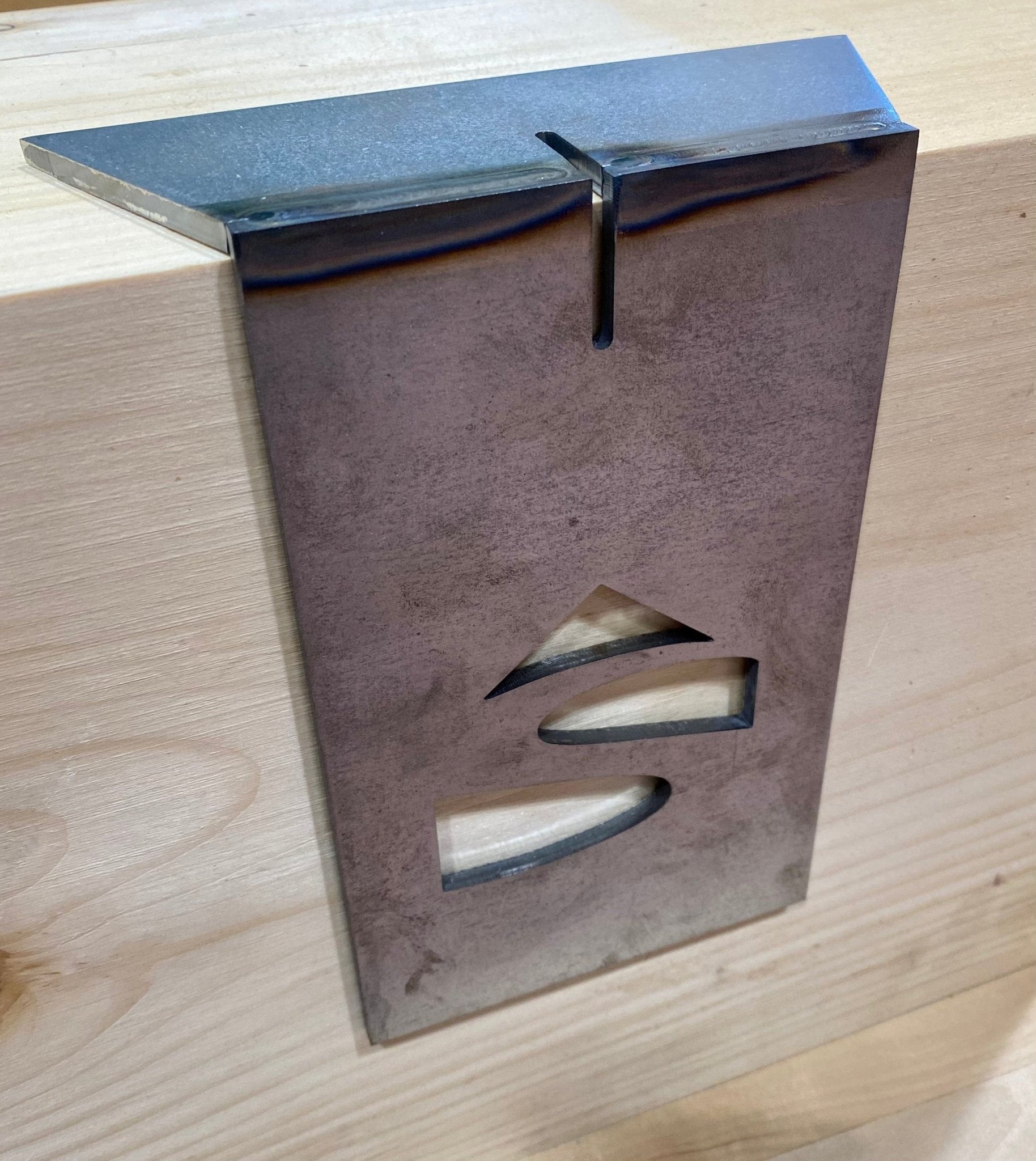

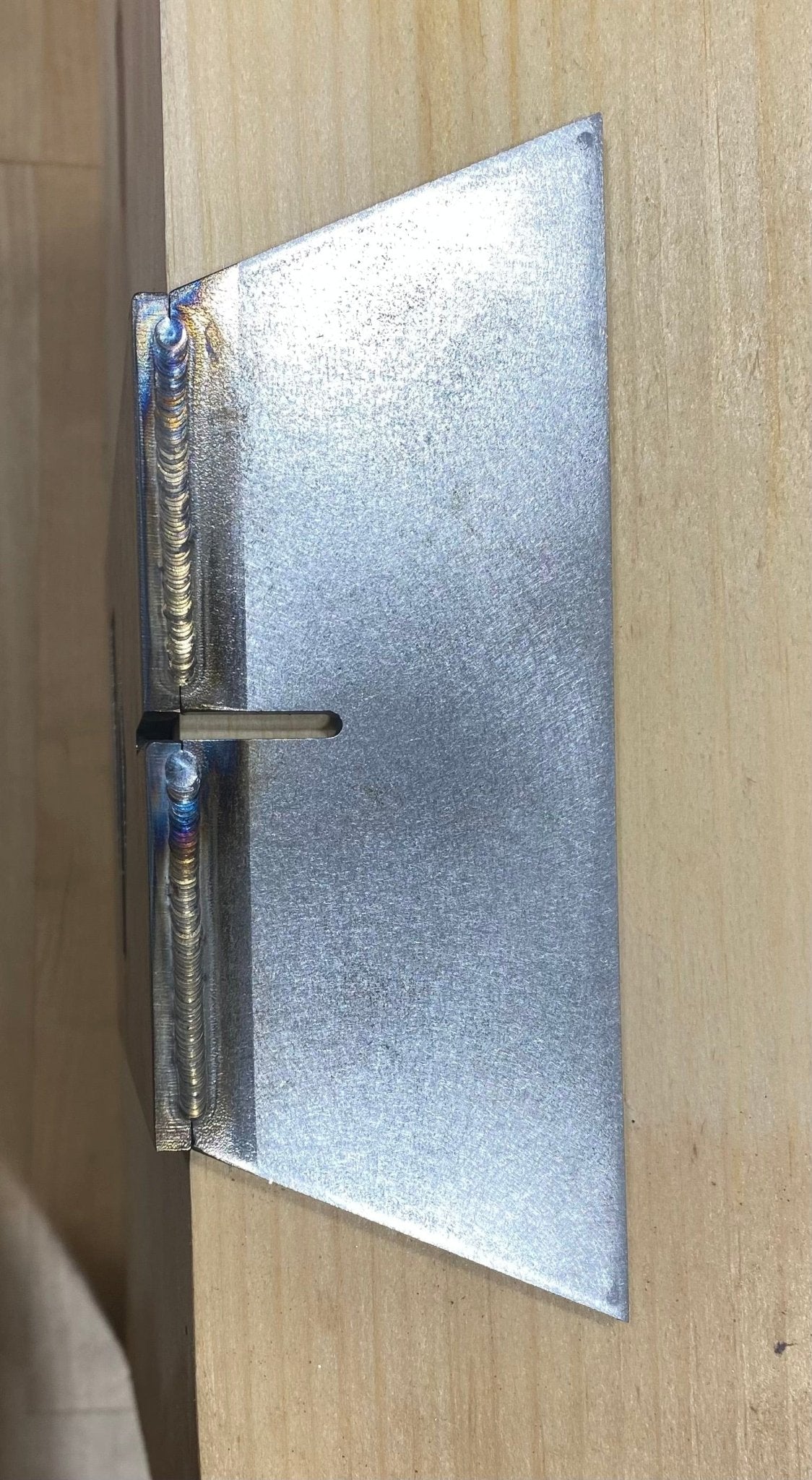

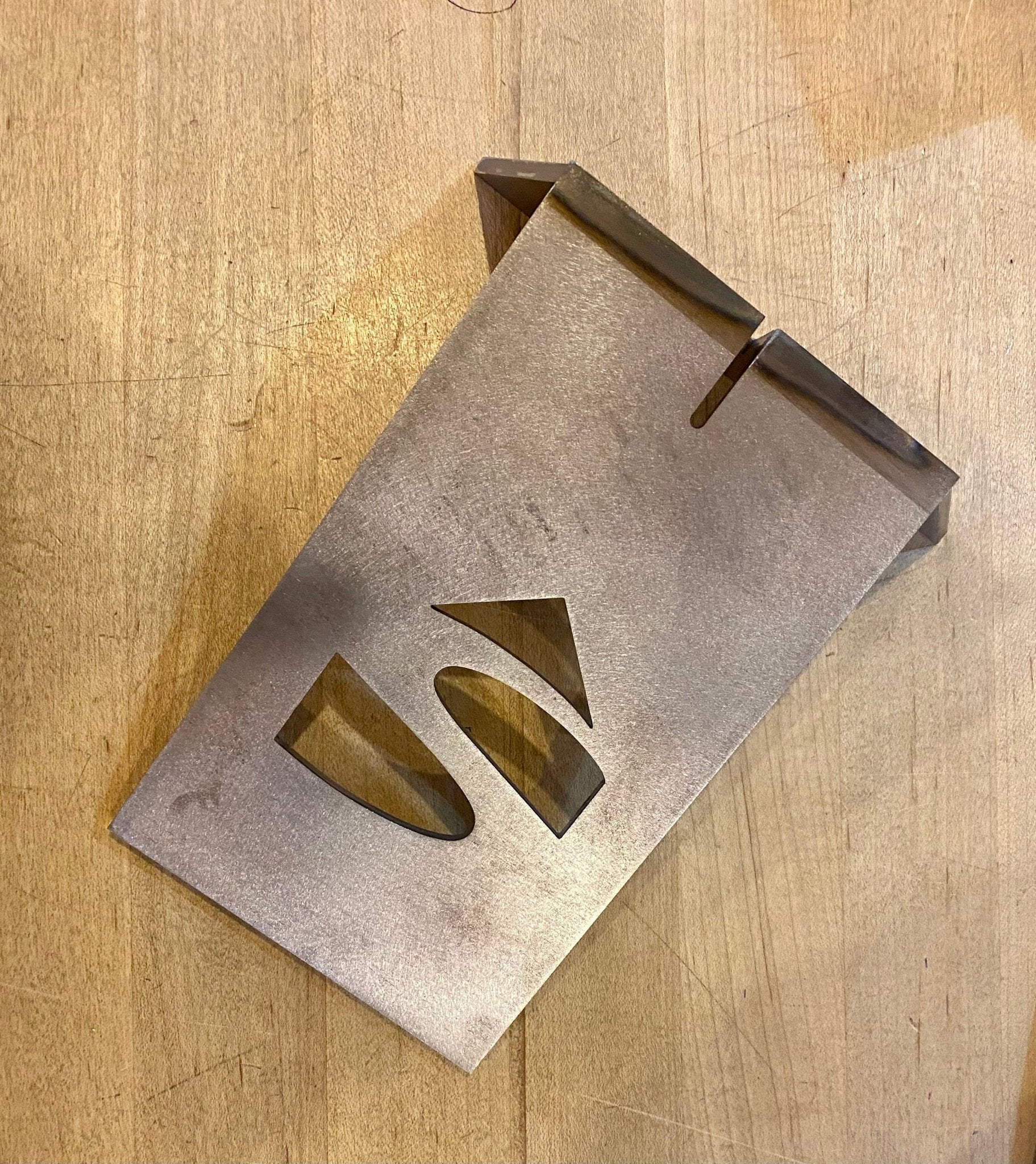

Streamline your timber framing projects with the Timber Frame Dovetail Layout Jig, a precision tool born from five decades of hands-on experience in the craft.

Key Features:

  • Custom-designed by experienced timber framers
  • Optimized for rapid and accurate dovetail and dovetail pocket layout
  • Durable construction for long-lasting use
  • Made in-house by Shelter's craftsmen

Specifications:

  • Inside Depth of pocket: 2-1/4 inches
  • Inside Height of Pocket: 7 inches
  • Widest Width of Pocket: 6-1/4 inches
  • Narrowest Width of Pocket: 4-1/4 inches

Ideal for:

  • Professional timber framers
  • DIY timber frame enthusiasts
  • Woodworking schools and instructors
  • Anyone working on dovetail joinery in large timbers

Benefits:

  • Significantly speeds up the layout process
  • Ensures consistent and accurate dovetail dimensions
  • Reduces errors in complex joinery layout
  • Adaptable to various timber sizes within its range

The Timber Frame Dovetail Layout Jig is more than just a tool; it's the culmination of 50 years of timber framing wisdom. This jig addresses the common challenges and inefficiencies encountered in dovetail layout, offering a solution that enhances both speed and precision.

Its unique design, with varying widths from 4-1/4 inches to 6-1/4 inches, allows for flexibility in dovetail sizing while maintaining consistency across your project. The 2-1/4-inch pocket depth and 7-inch height accommodate a wide range of timber dimensions, making this jig versatile for various project scales.

Crafted in-house by Shelter's experienced team, this jig embodies the quality and practicality that professional timber framers demand. Its robust construction ensures it will withstand the rigors of job site use, becoming a reliable companion for numerous projects to come.

For novice timber framers, this jig serves as an invaluable learning tool, providing a tangible guide to proper dovetail proportions and layout. For seasoned professionals, it offers a means to increase efficiency without compromising on the craftsmanship that defines timber frame construction.

Whether you're working on a single timber frame project or running a busy timber framing operation, the Timber Frame Dovetail Layout Jig will quickly become an indispensable part of your toolkit. It's not just about saving time; it's about enhancing the quality and consistency of your work.
