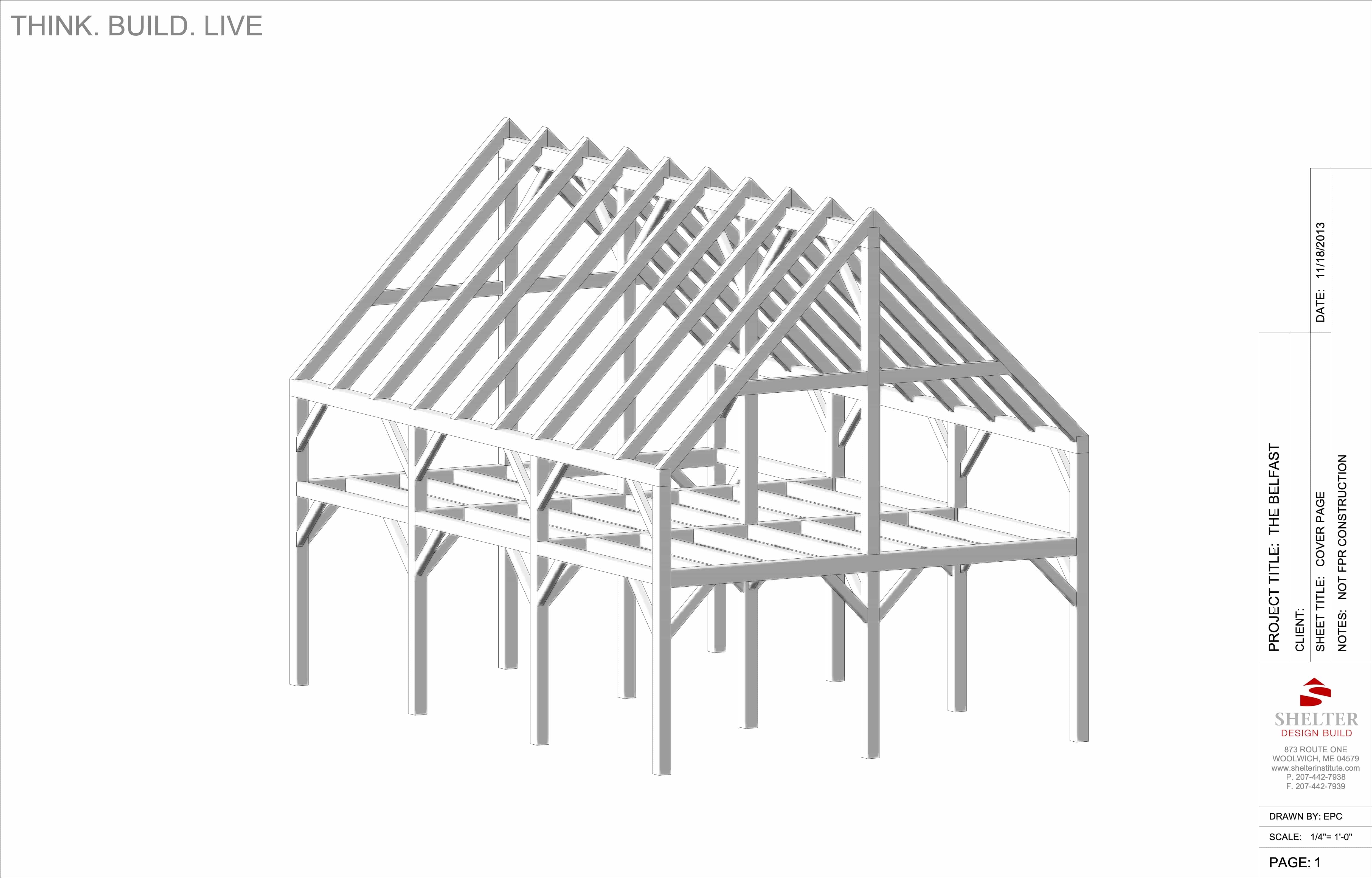

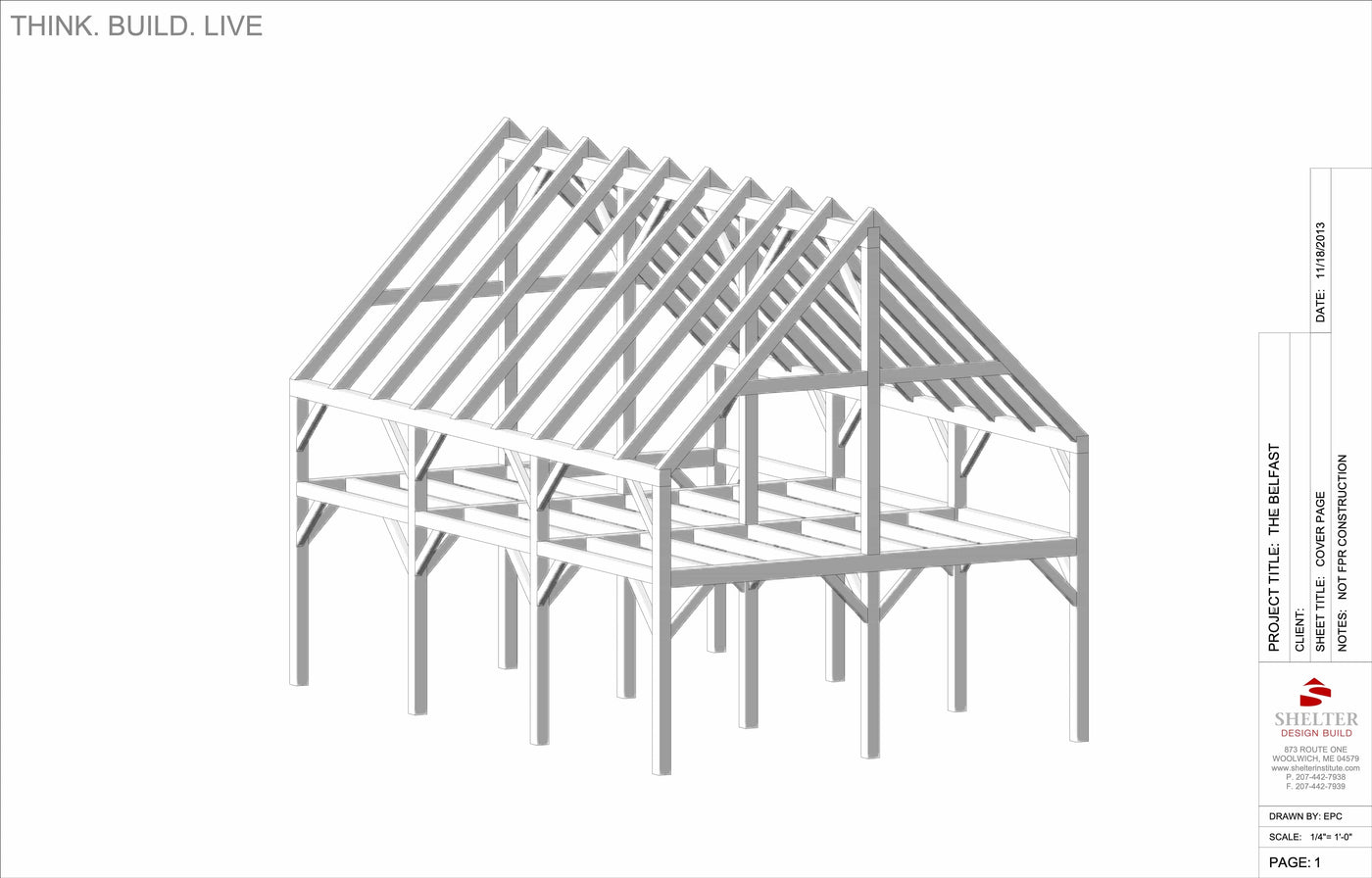

The Timber Frame Cut Sheet Package 24x36 with 5-Foot Kneewall from Shelter Institute features an illustration of a timber frame structure with a gabled roof, labeled "The Belfast," displaying construction details and the company logo on the side.

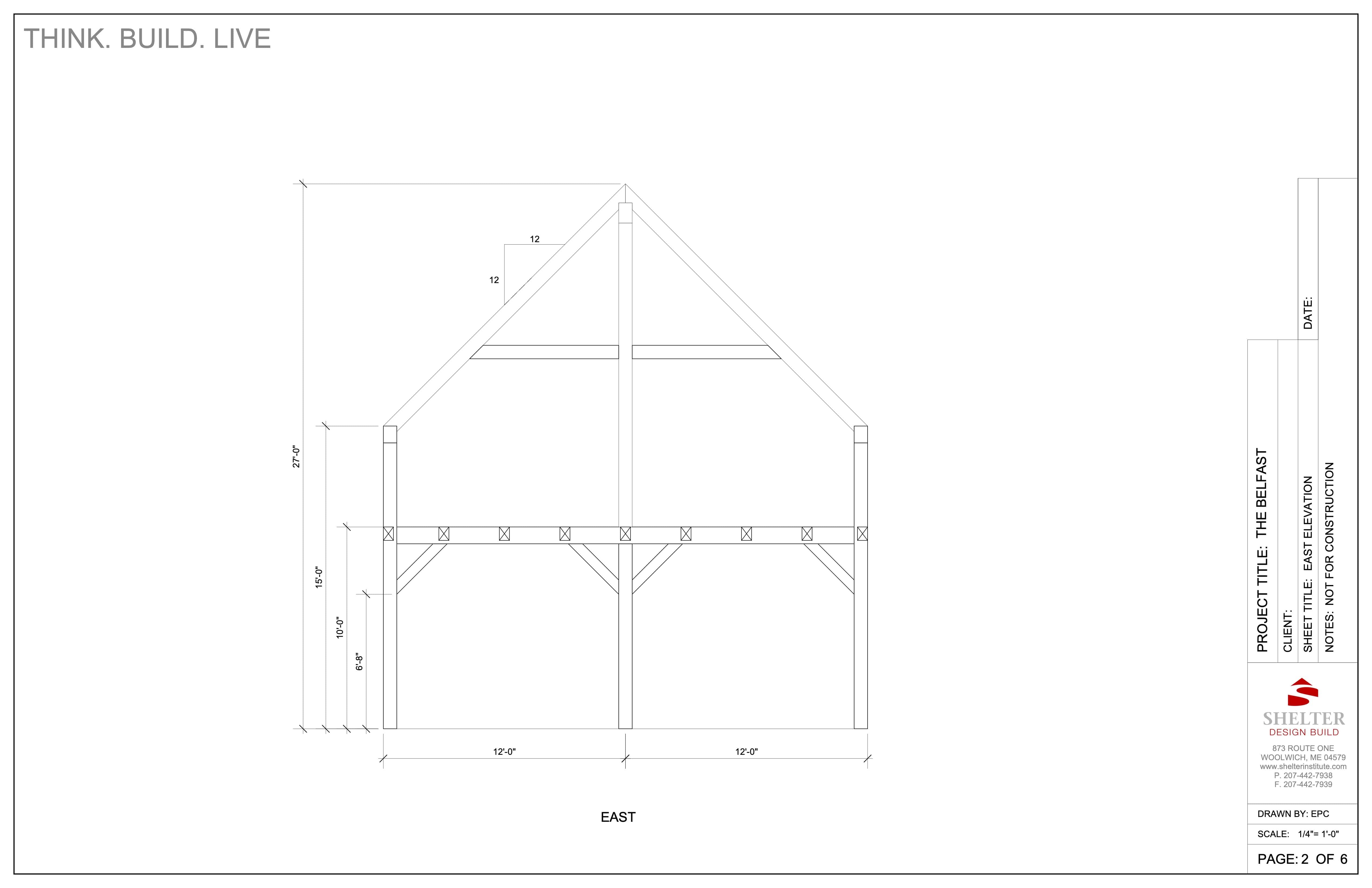

The 24x36 Timber Frame Cut Sheet Package from Shelter Institute features an architectural blueprint showing the east elevation of "The Belfast" with a 5-foot kneewall. It includes grid dimensions and structural details as part of a detailed drawing package.

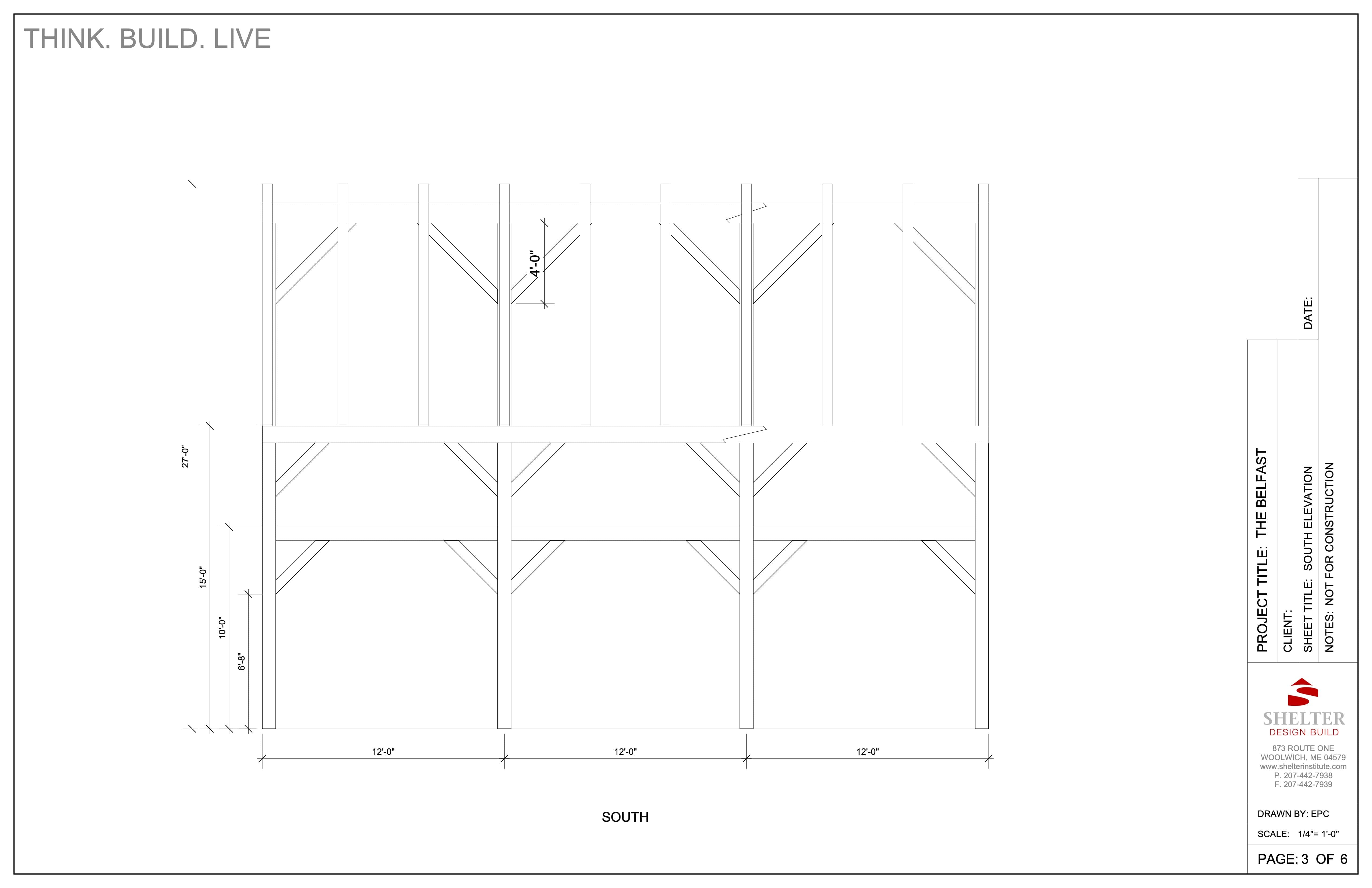

The 24x36 Timber Frame Cut Sheet Package from Shelter Institute presents 'THE BELFAST' blueprints, featuring a detailed building frame drawing with precise measurements, structural outlines, and a 'South' elevation showcasing the intricate design with a 5-foot kneewall.

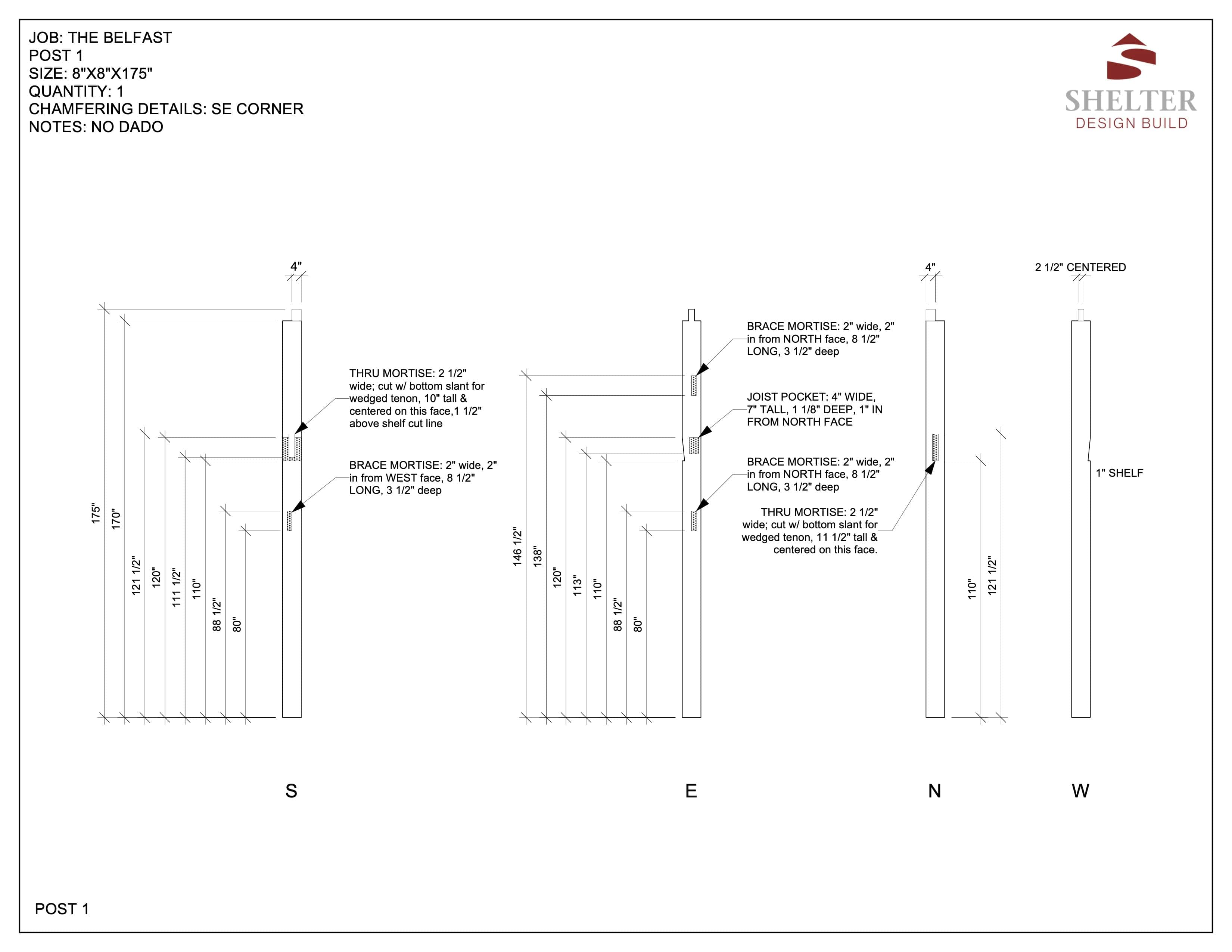

The Timber Frame Cut Sheet Package 24x36 with 5-Foot Kneewall by Shelter Institute details the structure's post dimensions and assembly instructions, emphasizing precise timber frame design with centered mortises and no dado.

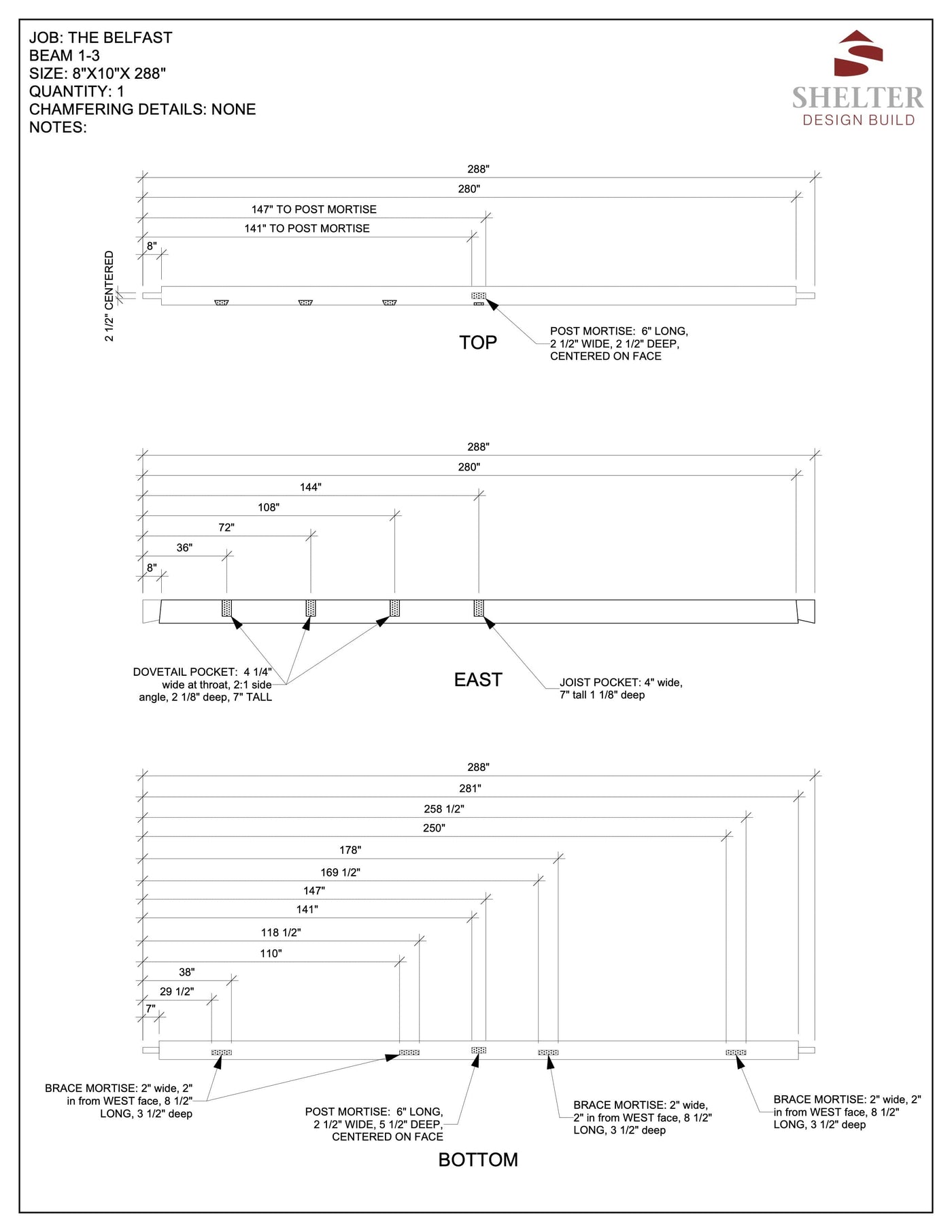

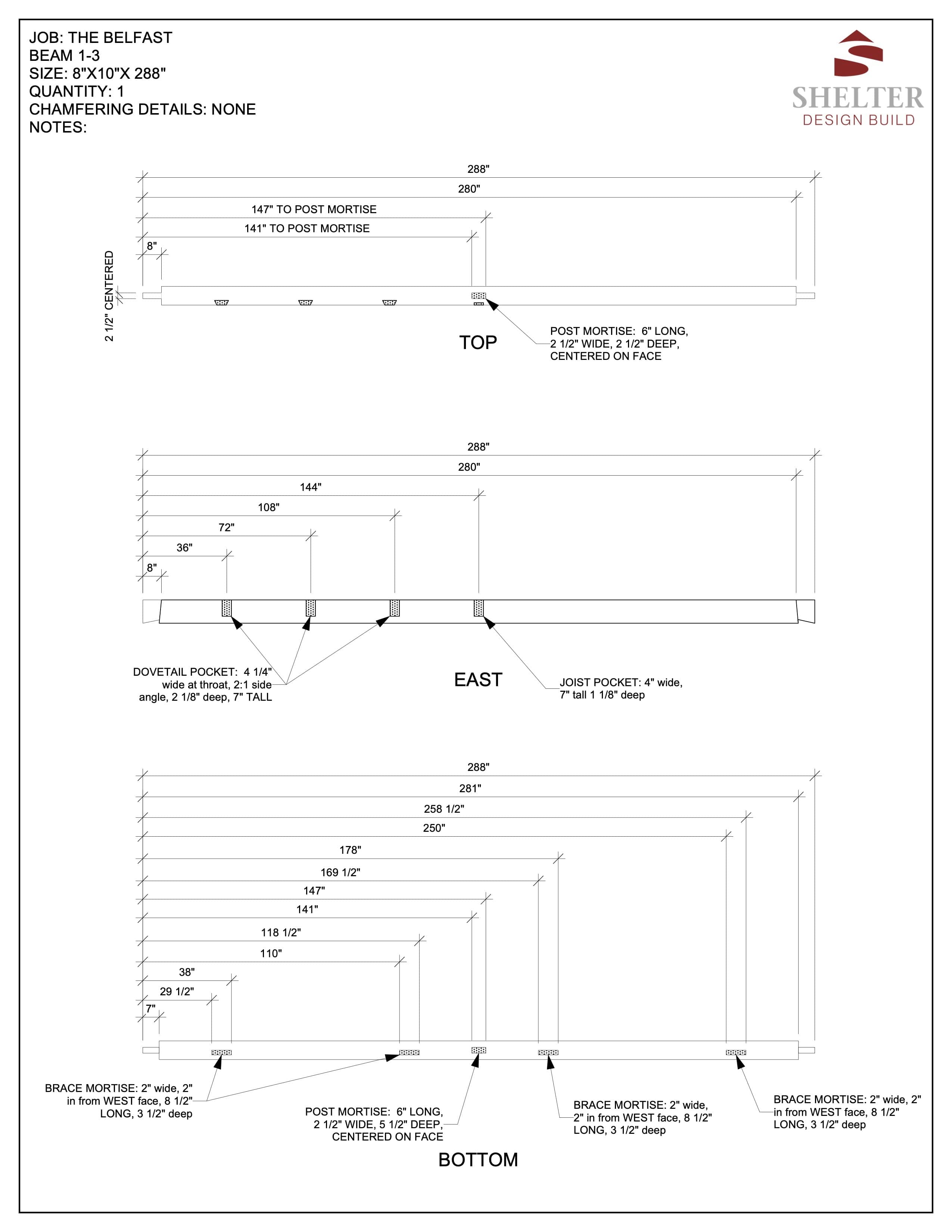

The "The Belfast" project blueprint features the Shelter Institute's Timber Frame Cut Sheet Package 24x36 with 5-Foot Kneewall, offering detailed measurements and notes for timber frame construction.

The Belfast 24x36: Timber Frame Plan & Cut Sheet Package

From $496.00 $0.00 /
Subscription

Our Cut Sheet Package includes fully detailed drawings of each unique timber, providing everything you need to cut and assemble this timber frame structure.

Frame Specifications:

  • Dimensions: 24' wide × 36' long (outside-of-post to outside-of-post)
  • First Floor: 864 square feet
  • Second Floor: 792 square feet (with 7'+ headroom)
  • Kneewall Height: 5 feet
  • Total Living Space: 1,656 square feet

This versatile design works beautifully as a two-bedroom home, three-car garage, five-stall barn, camp, cabin, boat house, workshop, or any combination you envision.

What's Included:

  • Detailed cut sheet for each timber with all joinery specifications
  • Elevation framing plans
  • Complete lumber list
  • Fasteners list with specifications
  • Peg locations
  • Joint details

If you've attended one of our in-person classes or completed our online course, you know the level of precision and detail you can expect in this package.

Custom Designs Available: If this building isn't exactly what you're looking for, our design team is happy to create a custom design tailored to your needs.

Delivery: Upon purchase, you'll receive both a PDF for immediate printing and a hard copy via mail.
