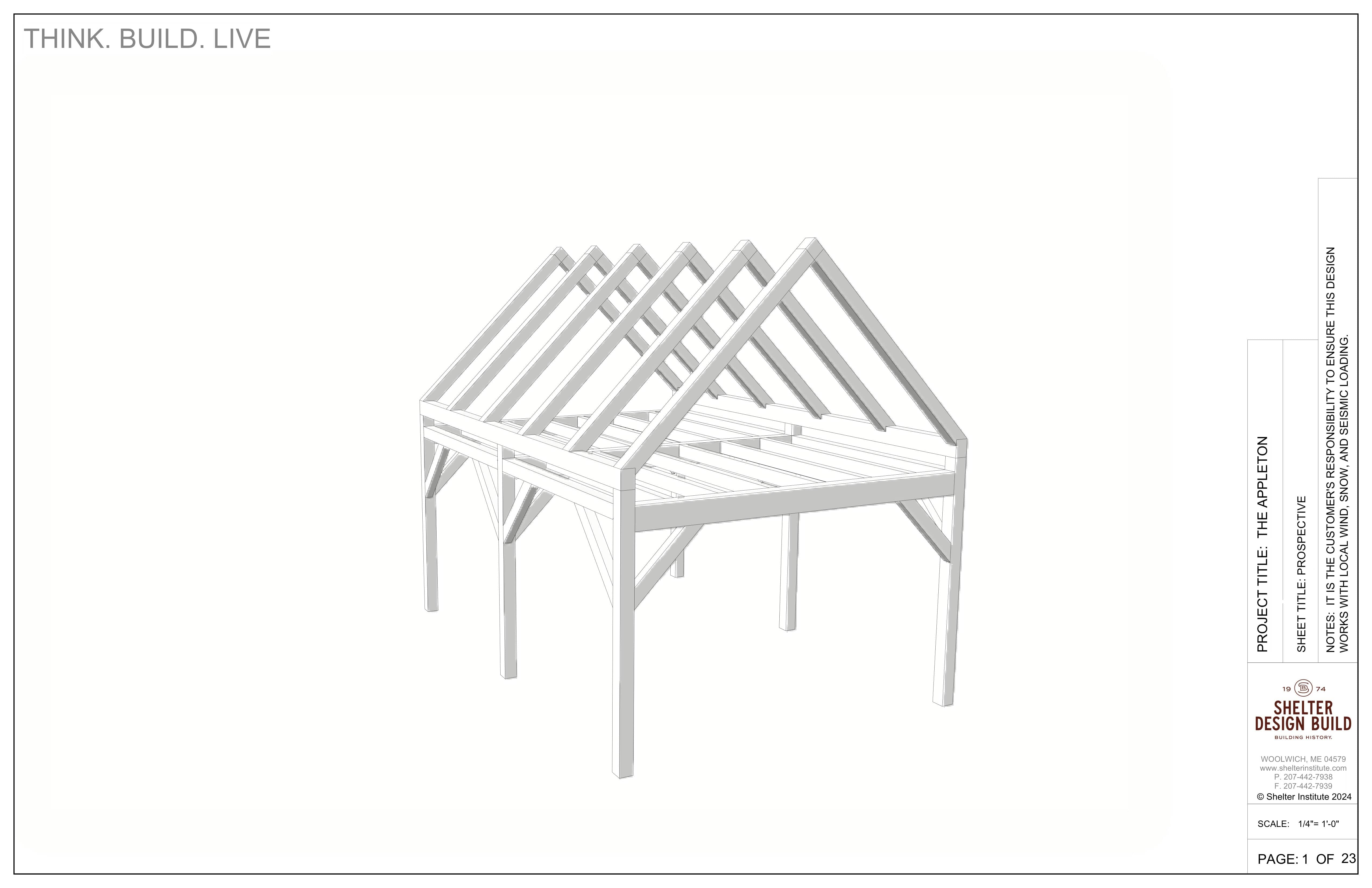

3D architectural drawing of The Appleton 14x20: Timber Frame Plan & Cut Sheet Package by Shelter Institute, featuring six gabled roof trusses and an elevated rectangular platform—ideal for a 14x20 garage. "PROJECT TITLE: THE APPLETON" is labeled on the right side.

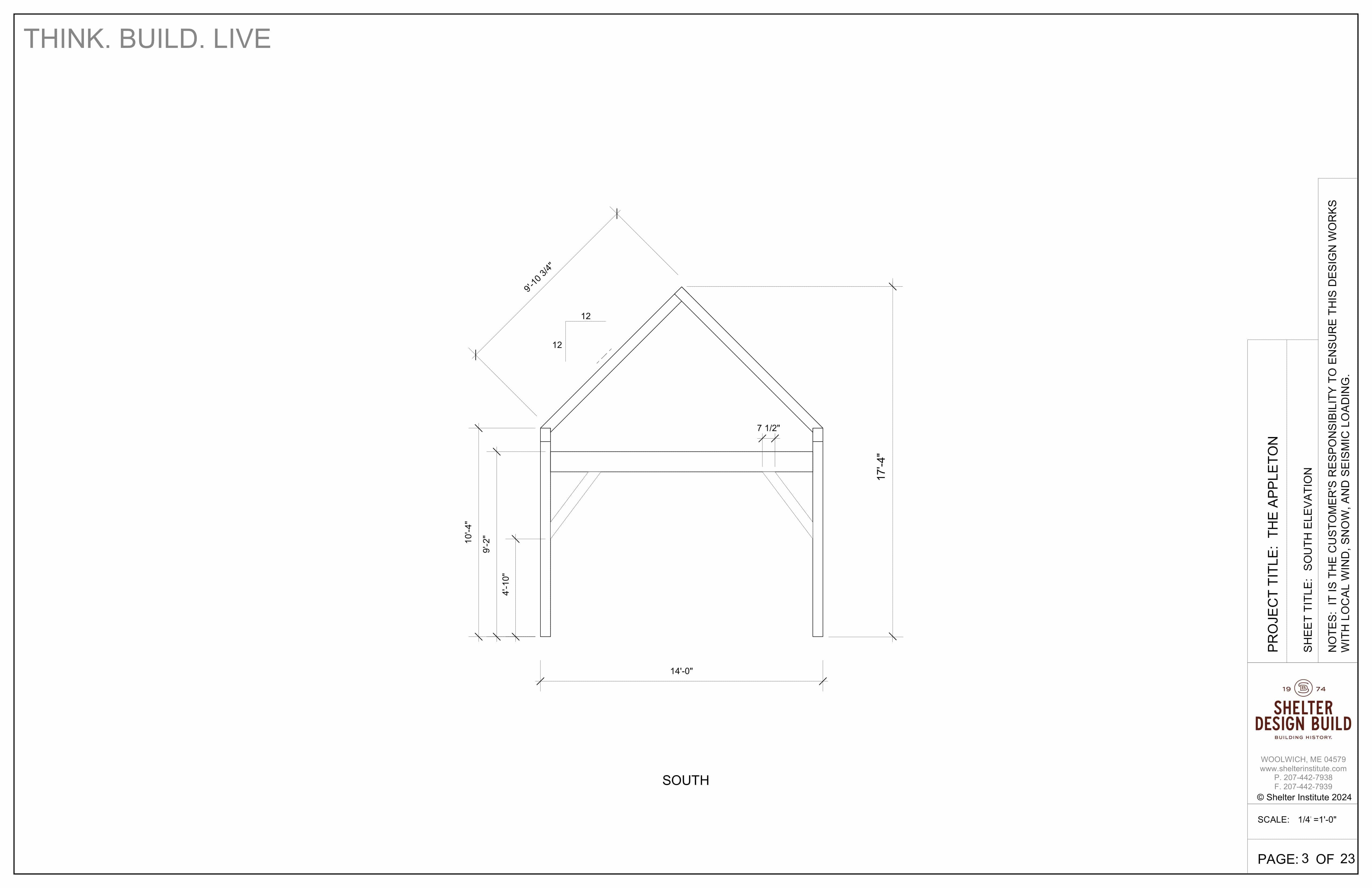

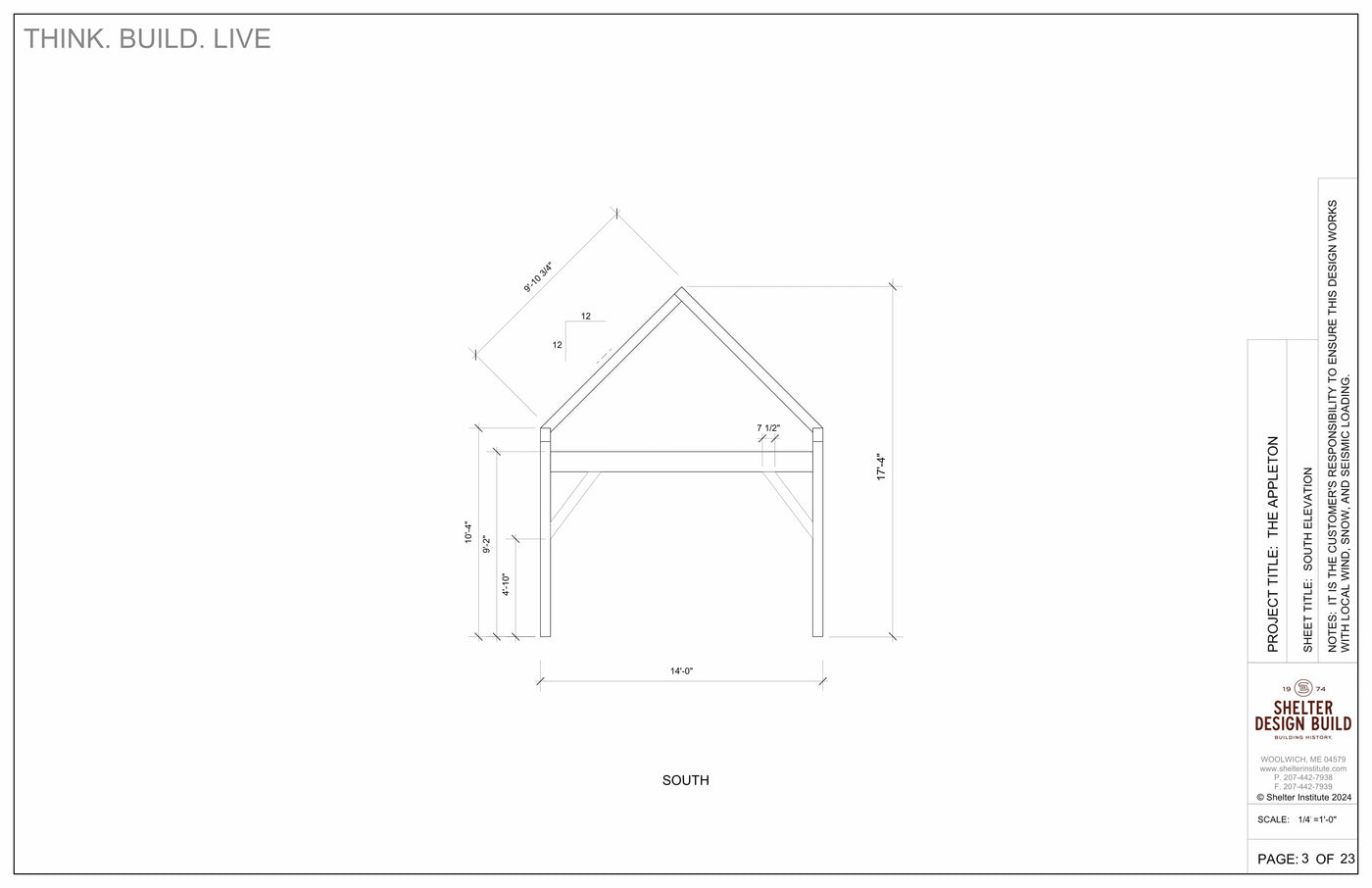

South elevation architectural drawing of The Appleton 14x20: Timber Frame Plan & Cut Sheet Package by Shelter Institute, showing a simple gabled garage with pitched roof, open sides, dimensions labeled, and project info in the right-side title block.

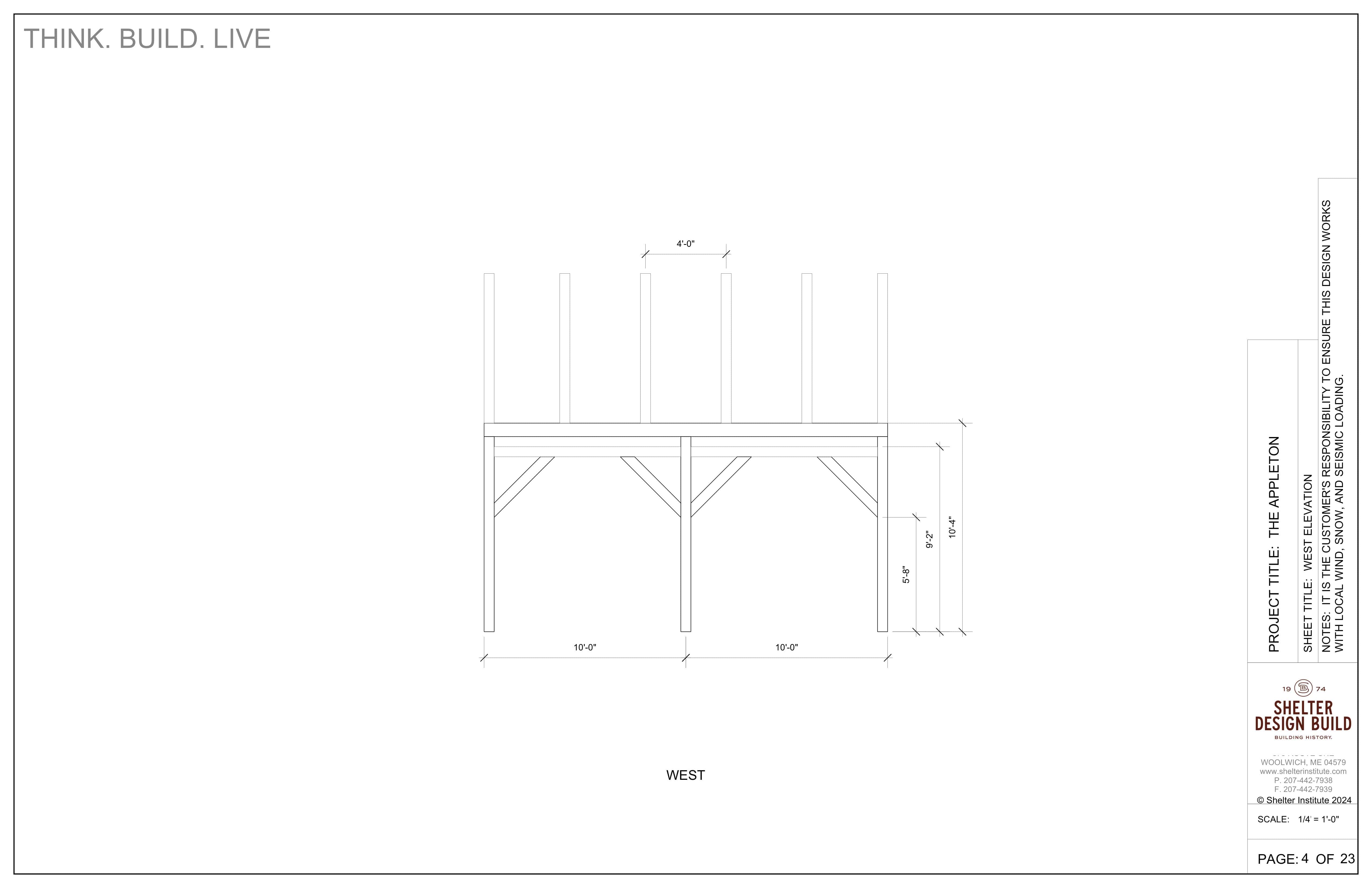

A technical drawing labeled West displays a side view of The Appleton 14x20 by Shelter Institute, a compact timber frame cabin with support beams and posts, plus dimensions and construction notes from the Plan & Cut Sheet Package.

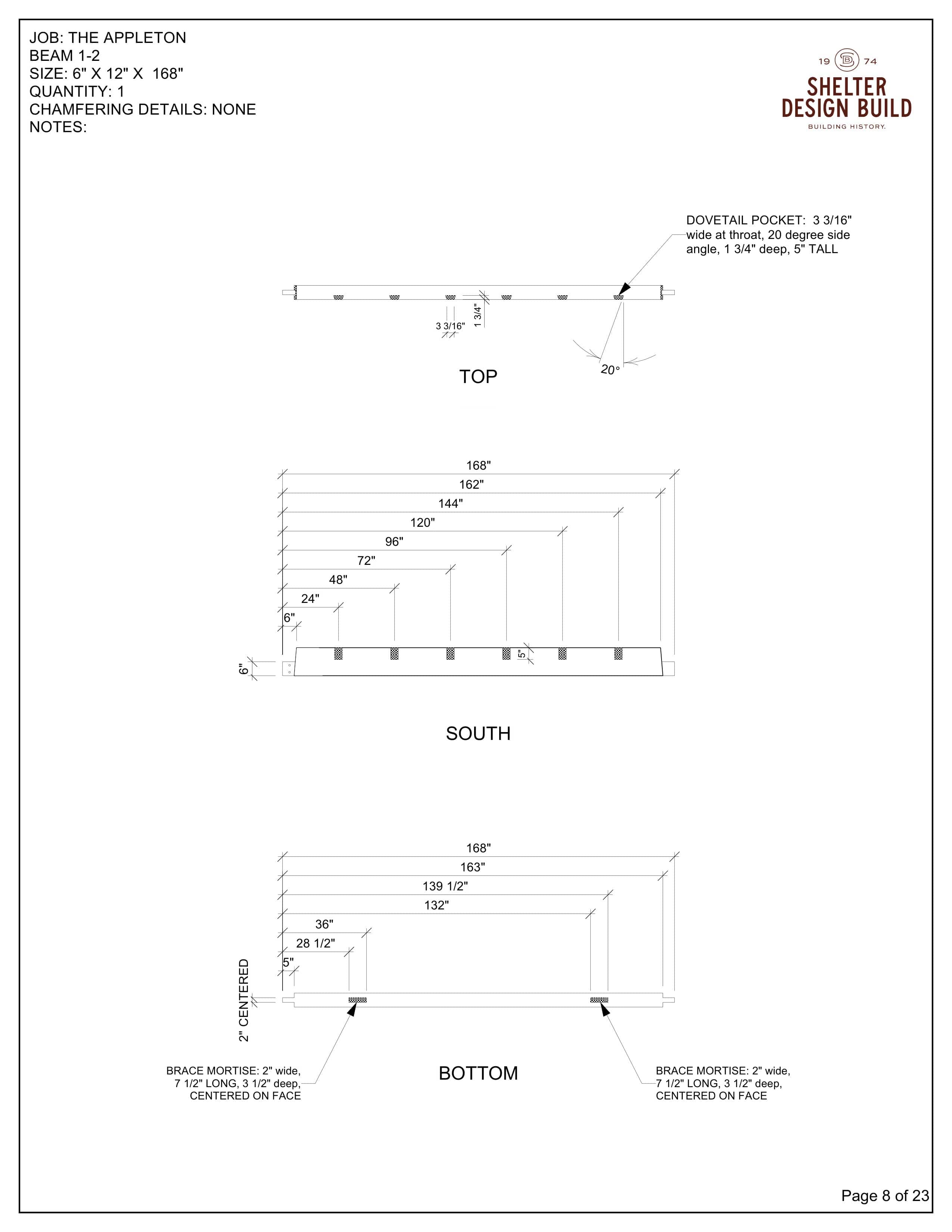

Architectural drawing for "The Appleton 14x20: Timber Frame Plan & Cut Sheet Package" by Shelter Institute, showing top, south, and bottom beam views with detailed measurements and joinery locations.

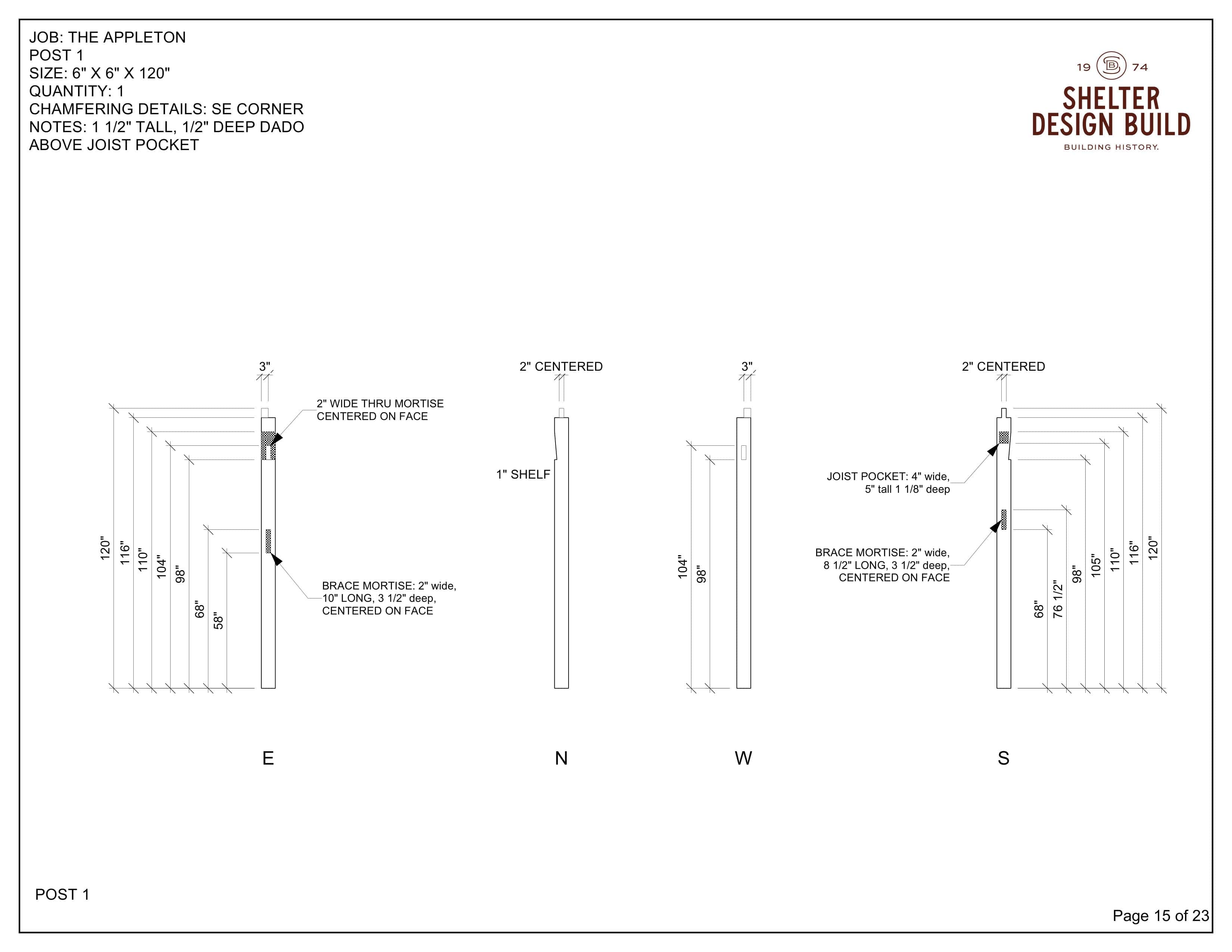

Shelter Institute’s The Appleton 14x20: Timber Frame Plan & Cut Sheet Package includes architectural drawings with North, East, and South elevations showing labeled mortise locations for 6x6x12 posts, plus bracket and joist pocket details.

The Appleton 14x20: Timber Frame Plan & Cut Sheet Package

From $496.00 $0.00 /
Subscription

Our Cut Sheet Package includes fully detailed drawings of each unique timber, providing everything you need to cut and assemble this compact timber frame structure.

Frame Specifications:

  • Dimensions: 14' wide × 20' long (outside-of-post to outside-of-post)
  • First Floor: 280 square feet
  • Second Floor: 280 square feet of loft storage space
  • Kneewall Height: 2 feet
  • Post Size: 6x6 timbers throughout
  • Roof Pitch: 12:12
  • Total Height: Approximately 17'+ at peak

This efficient design features smaller 6x6 posts, making assembly and raising easier than larger frames. Perfect as a one-car garage, cozy camp or cabin with sleeping loft, woodshop, boat house, equipment shed, she shed, man cave, or charming screen house. The compact footprint maximizes space while maintaining classic timber frame character.

What's Included:

  • Detailed cut sheet for each timber with all joinery specifications
  • Elevation framing plans
  • Complete lumber list
  • Fasteners list with specifications
  • Peg locations
  • Joint details

If you've attended one of our in-person classes or completed our online course, you know the level of precision and detail you can expect in this package.

Custom Designs Available: If this building isn't exactly what you're looking for, our design team is happy to create a custom design tailored to your needs.

Delivery: Upon purchase, you'll receive both a PDF for immediate printing and a hard copy via mail.

Available for pickup
In stock at 873 US-1, Woolwich, ME 04579 · Usually ready in 24 hours

In stock at 873 US-1, Woolwich, ME 04579

The Appleton 14x20: Timber Frame Plan & Cut Sheet Package

Available for pickup

873 US-1, Woolwich, ME 04579

Usually ready in 24 hours

873 U.S. 1
Woolwich ME 04579
United States

+12074427938

Our Cut Sheet Package includes fully detailed drawings of each unique timber, providing everything you need to cut and assemble this compact timber frame structure.

Frame Specifications:

  • Dimensions: 14' wide × 20' long (outside-of-post to outside-of-post)
  • First Floor: 280 square feet
  • Second Floor: 280 square feet of loft storage space
  • Kneewall Height: 2 feet
  • Post Size: 6x6 timbers throughout
  • Roof Pitch: 12:12
  • Total Height: Approximately 17'+ at peak

This efficient design features smaller 6x6 posts, making assembly and raising easier than larger frames. Perfect as a one-car garage, cozy camp or cabin with sleeping loft, woodshop, boat house, equipment shed, she shed, man cave, or charming screen house. The compact footprint maximizes space while maintaining classic timber frame character.

What's Included:

  • Detailed cut sheet for each timber with all joinery specifications
  • Elevation framing plans
  • Complete lumber list
  • Fasteners list with specifications
  • Peg locations
  • Joint details

If you've attended one of our in-person classes or completed our online course, you know the level of precision and detail you can expect in this package.

Custom Designs Available: If this building isn't exactly what you're looking for, our design team is happy to create a custom design tailored to your needs.

Delivery: Upon purchase, you'll receive both a PDF for immediate printing and a hard copy via mail.
