Lie-Nielsen No. 60-1/2R Rabbet Block Plane

$205.99 USD /
Subscription -

Made in Maine an hour up the coast from us. A block plane that cuts to the corner.

Best For

  • Trimming tenons
  • Cutting small rabbets
  • Clean cross-grain cuts with the nickers
Available for pickup
In stock at 873 US-1, Woolwich, ME 04579 · Usually ready in 24 hours

In stock at 873 US-1, Woolwich, ME 04579

Lie-Nielsen No. 60-1/2R Rabbet Block Plane

Available for pickup

873 US-1, Woolwich, ME 04579

Usually ready in 24 hours

873 U.S. 1
Woolwich ME 04579
United States

+12074427938

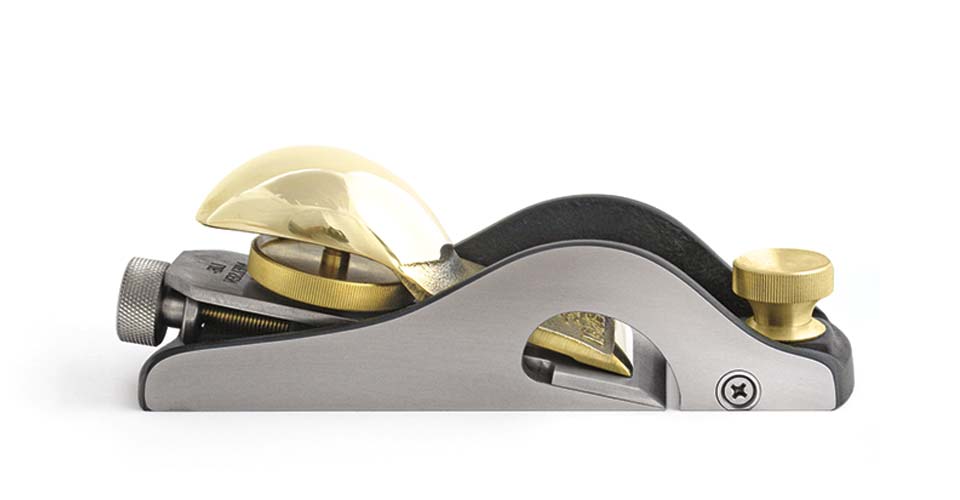

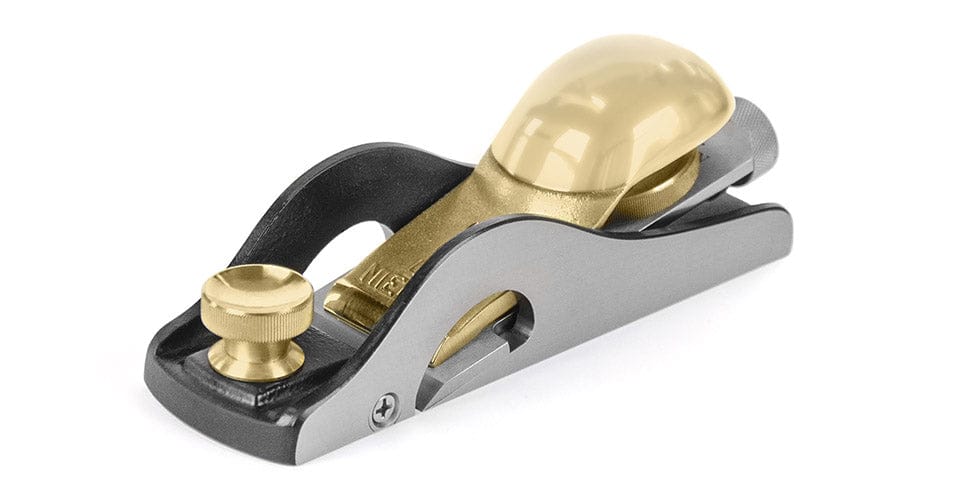

The Lie-Nielsen No. 60-1/2R Rabbet Block Plane is a low angle block plane with open sides and a full-width blade, made in Warren, Maine, for cutting small rabbets and trimming tenons. It is based on the Sargent No. 507.

The blade runs slightly wider than the 1-3/4 in body, so it cuts right into a corner. Two round A2 nickers, one on each side, score the fibers ahead of the blade for clean cross-grain cuts, and rotate to retract when you don't need them. The 1/8 in A2 blade is bedded bevel up at 12 degrees for a 37 degree cutting angle, and the fixed mouth is set for shavings up to about .005 to .008 in. The ductile iron body is ground flat and square to .001 in, with a manganese bronze cap. When Gaius talks about woodworking as therapy, these are the tools he means.

Thomas Lie-Nielsen started Lie-Nielsen Toolworks in 1981 with a single plane, a bronze edge plane based on the old Stanley No. 95, and early on made his planes in a backyard shed in West Rockport, Maine. In 1988 the company moved into the building in Warren, Maine, where it still makes its tools, about an hour up the coast from our campus.

  • Pattern: low angle rabbet block plane, fixed mouth, based on the Sargent No. 507
  • Size: 6-1/4 in long, 1-3/4 in wide; about 1-3/4 lb
  • Blade: full width (about .005 in wider than the body), 1/8 in thick, A2 tool steel, Rc 60-62
  • Angles: 25 degree bevel, bedded bevel up at 12 degrees, 37 degree cutting angle
  • Nickers: two round A2 nickers, .010 in proud, rotate to retract
  • Mouth: fixed, for shavings up to .005 to .008 in
  • Body: ductile iron, ground flat and square to .001 in; manganese bronze cap
  • Made in: Warren, Maine, USA by Lie-Nielsen Toolworks

Customer Reviews

  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
S
Shannon

Love the Lei-Nielsen planes, was extremely happy with the speed that I received the order

K
Kirk

Arrived well packaged and shipped quickly, which was awesome. Had been eyeing this plane for a while. It is every bit as useful (and beautiful) as i had hoped. I’m a hobbyist so i could probably get away with using this as my full time block plane.
