Lie-Nielsen No. 102 Low Angle Block Plane

$160.99 USD /
Subscription -

The classic Stanley No. 102 pattern, remade in Maine to Lie-Nielsen standards.

Best For

  • One-handed trimming and touch-ups
  • End grain and chamfers
  • A first Lie-Nielsen plane

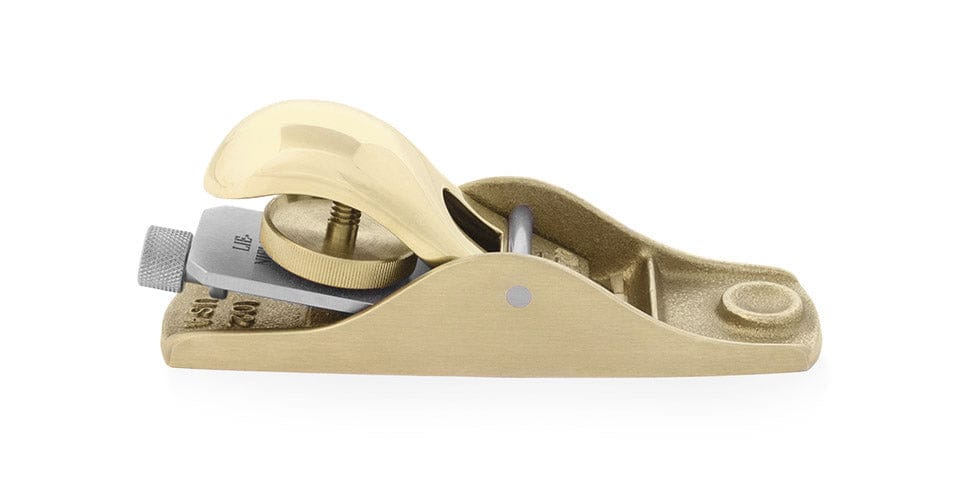

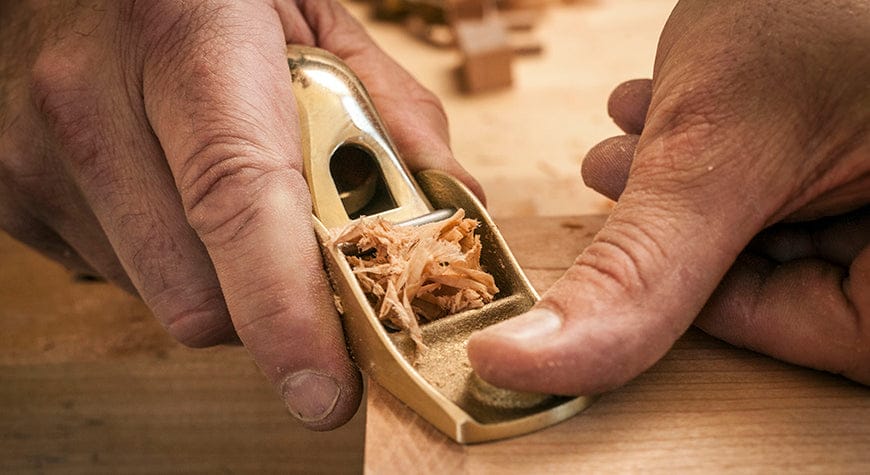

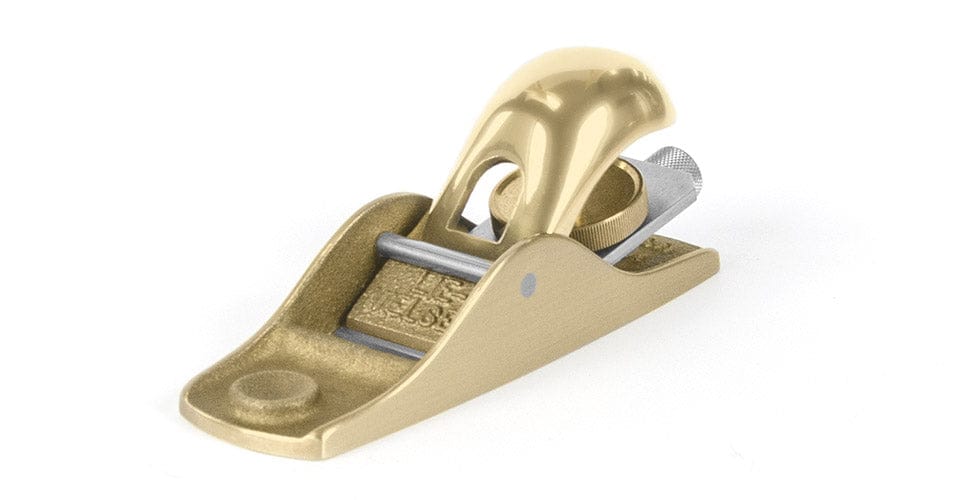

The Lie-Nielsen No. 102 Low Angle Block Plane is a small bronze block plane, 5-1/4 in long, made in Warren, Maine. It sits easily in one hand for end grain, chamfers and small fitting jobs.

The body and cap are manganese bronze, lapped flat. The 1/8 in A2 blade cuts a 1-1/4 in wide shaving and is bedded bevel up at 12 degrees for a 37 degree cutting angle, which suits end grain. The mouth is set for cuts of about .008 to .010 in, and a captive nut adjusts the blade with very little backlash.

Thomas Lie-Nielsen started Lie-Nielsen Toolworks in 1981 with a single plane, a bronze edge plane based on the old Stanley No. 95, and early on made his planes in a backyard shed in West Rockport, Maine. In 1988 the company moved into the building in Warren, Maine, where it still makes its tools, about an hour up the coast from our campus.

  • Size: 5-1/4 in long; 1-1/4 in cutting width
  • Blade: 1/8 in thick, A2 tool steel, Rc 60-62, cryogenically treated
  • Angles: 25 degree bevel, bedded bevel up at 12 degrees, 37 degree cutting angle
  • Mouth: fixed, set for .008 to .010 in cuts
  • Adjuster: captive nut; cap tensioned with a spinwheel
  • Body: manganese bronze, lapped flat; manganese bronze cap
  • Made in: Warren, Maine, USA by Lie-Nielsen Toolworks
