Lie-Nielsen No. 60-1/2 Adjustable Mouth Block Plane

$190.99 USD /
Subscription -

A low angle block plane with an adjustable mouth, made in Warren, Maine. 6-1/4 in long.

Best For

  • Trimming end grain
  • Chamfering edges
  • Fitting parts, one-handed

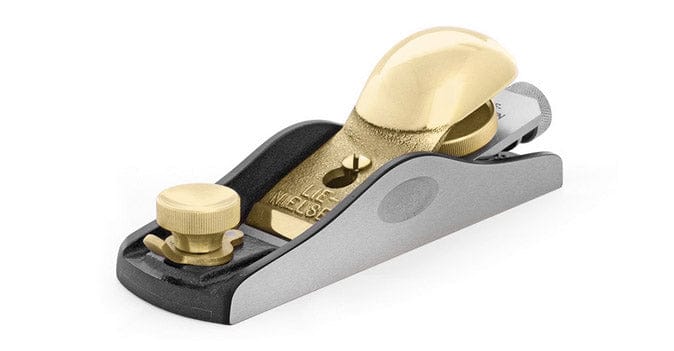

The Lie-Nielsen No. 60-1/2 Adjustable Mouth Block Plane is a low angle block plane based on the Stanley No. 60-1/2, made in Warren, Maine. At 6-1/4 in long and 1-3/4 in wide, it works in one hand for trimming end grain, chamfering edges and fitting parts.

The 1-3/8 in A2 blade is ground at 25 degrees and bedded bevel up at 12 degrees, for a 37 degree cutting angle that suits end grain. A movable shoe in front of the blade opens the mouth for heavy cuts or closes it for fine finishing cuts, and locks with a brass screw and lever. A captive stainless steel nut sets depth with very little backlash, and a bronze cap holds the blade, tensioned by a 1-1/2 in brass spinwheel. The ductile iron body is ground flat and square to within .001 in.

Thomas Lie-Nielsen started Lie-Nielsen Toolworks in 1981 with a single plane, a bronze edge plane based on the old Stanley No. 95, and early on made his planes in a backyard shed in West Rockport, Maine. In 1988 the company moved into the building in Warren, Maine, where it still makes its tools, about an hour up the coast from our campus.

  • Pattern: low angle adjustable mouth block plane, based on the Stanley No. 60-1/2
  • Size: 6-1/4 in long, 1-3/4 in wide; 1.5 lb
  • Blade: 1-3/8 in wide, 1/8 in thick, A2 tool steel, Rc 60-62, cryogenically treated
  • Angles: 25 degree bevel, bedded bevel up at 12 degrees, 37 degree cutting angle
  • Mouth: adjustable, movable shoe with brass locking screw and lever
  • Adjuster: captive stainless steel nut; bronze cap with 1-1/2 in brass spinwheel
  • Body: ductile iron, ground flat and square within .001 in
  • Made in: Warren, Maine, USA by Lie-Nielsen Toolworks
