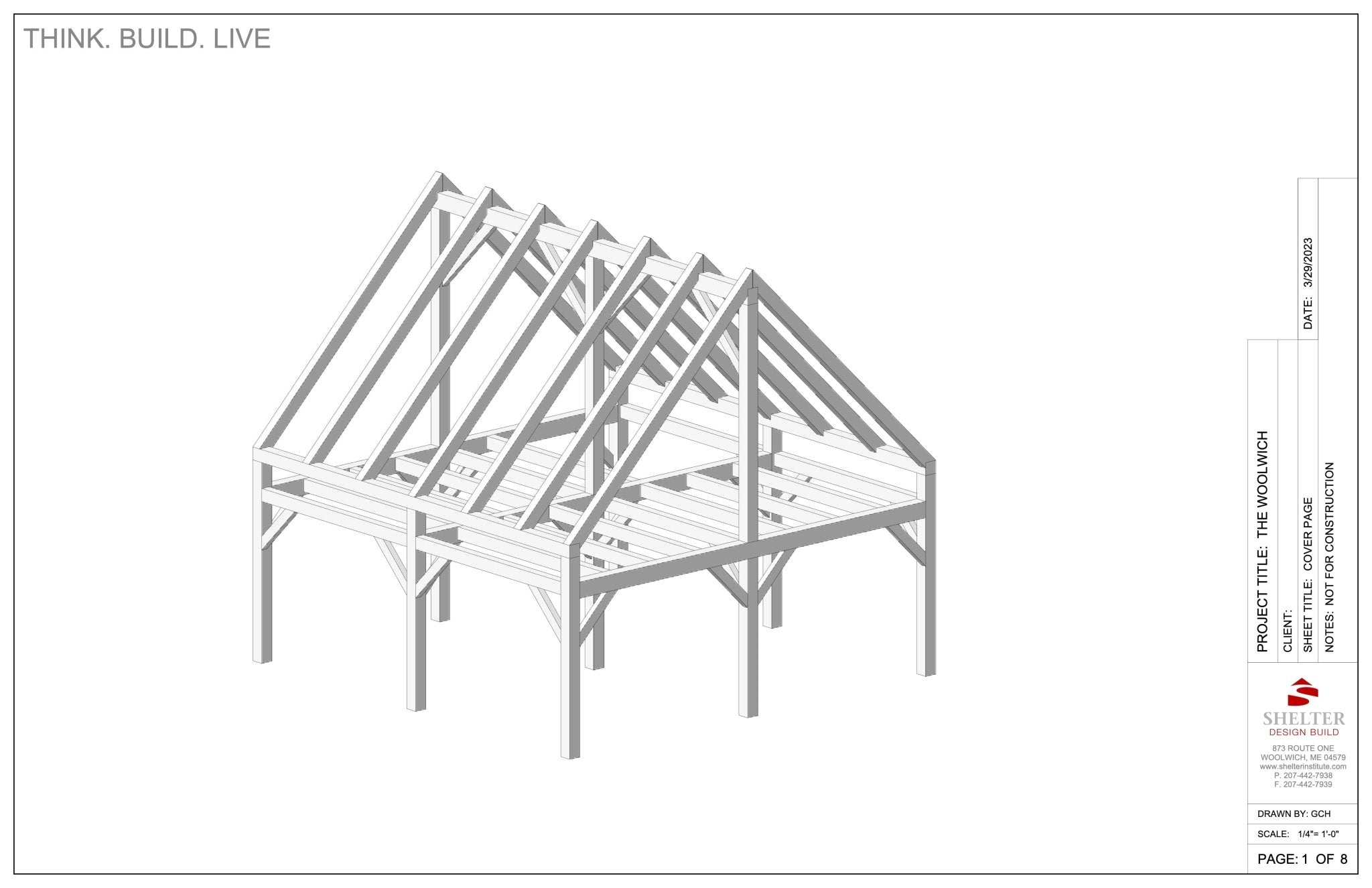

Minimalist 3D architectural drawing of The Woolwich 24x24 Timber Frame by Shelter Institute, showing exposed beams, ridge beam, and trusses. Perfect for house or building plans—includes full plan and cut sheet package on a clean white background.

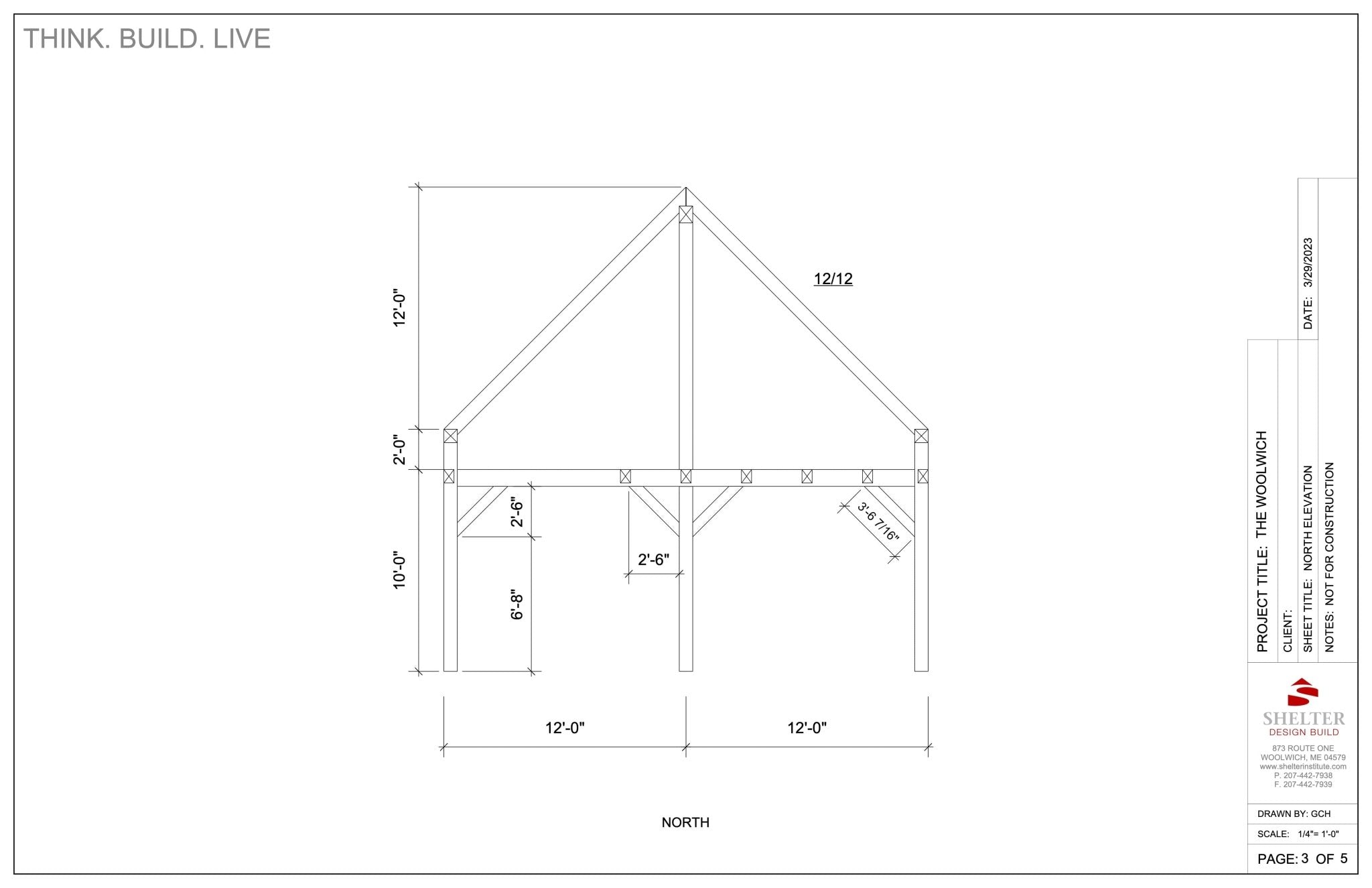

Architectural drawing of the north elevation for Shelter Institute's The Woolwich 24x24: Timber Frame Plan & Cut Sheet Package, featuring a 24-ft wide base, 12-ft roof height, peaked ridge beam, posts, beams, and labeled measurements.

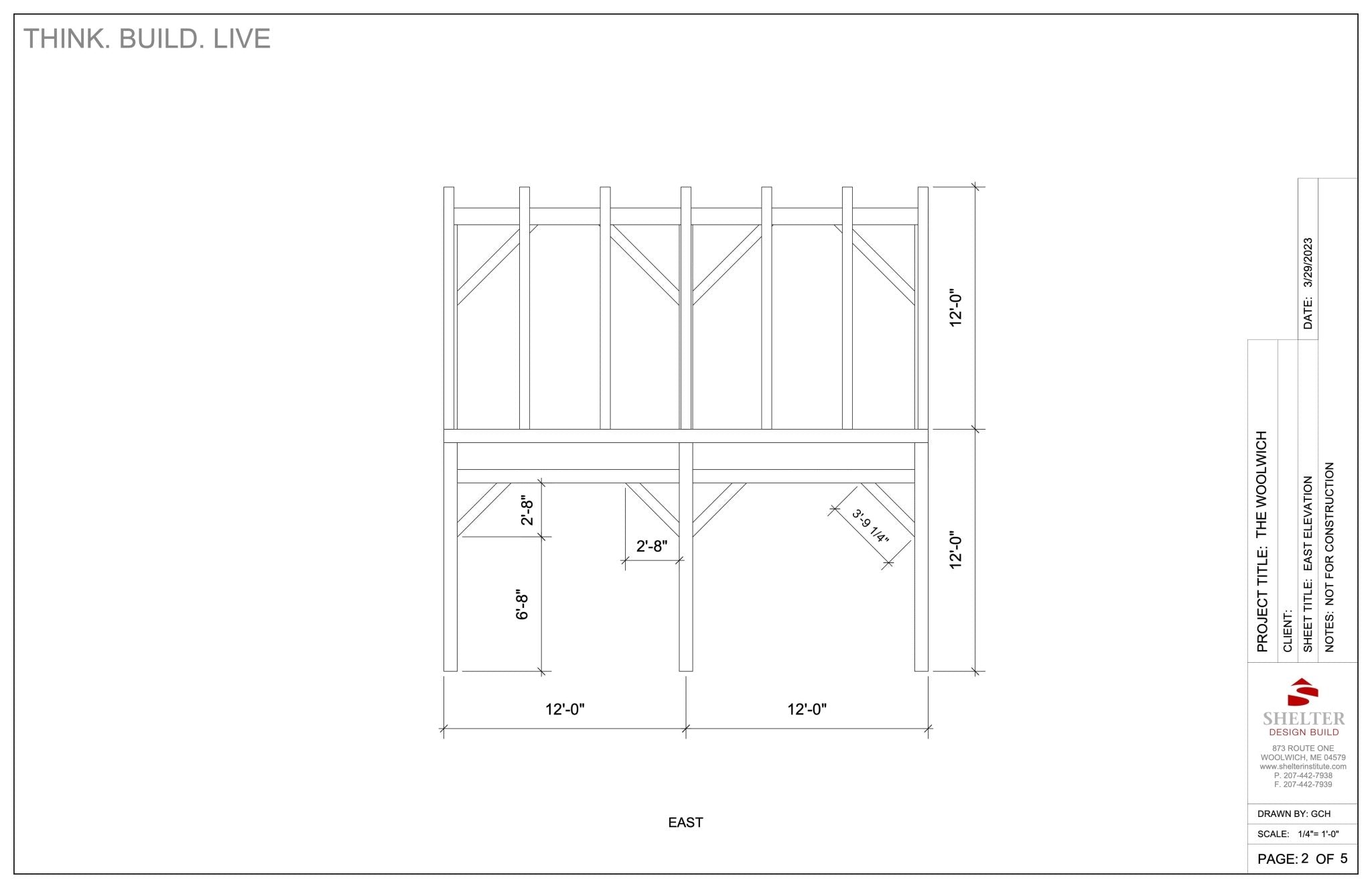

The Woolwich 24x24: Timber Frame Plan & Cut Sheet Package by Shelter Institute shows an east elevation with vertical supports, a prominent ridge beam, and labeled dimensions—24 ft wide and 120 in high—for all sections and beams.

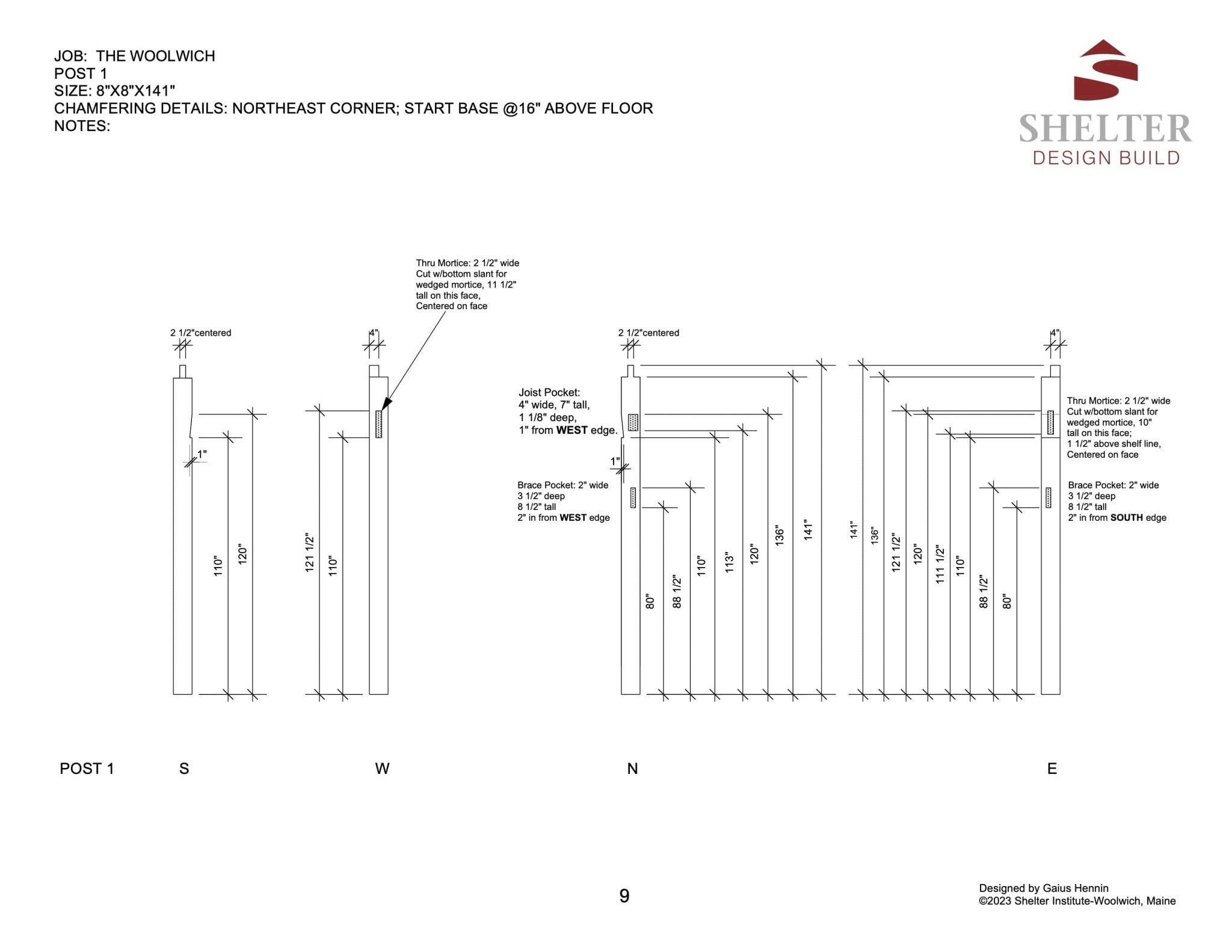

Architectural drawing of structural post details for the northeast corner of The Woolwich 24x24 Timber Frame by Shelter Institute, showing dimensions, joint placement, chamfering notes, and logo in the top right.

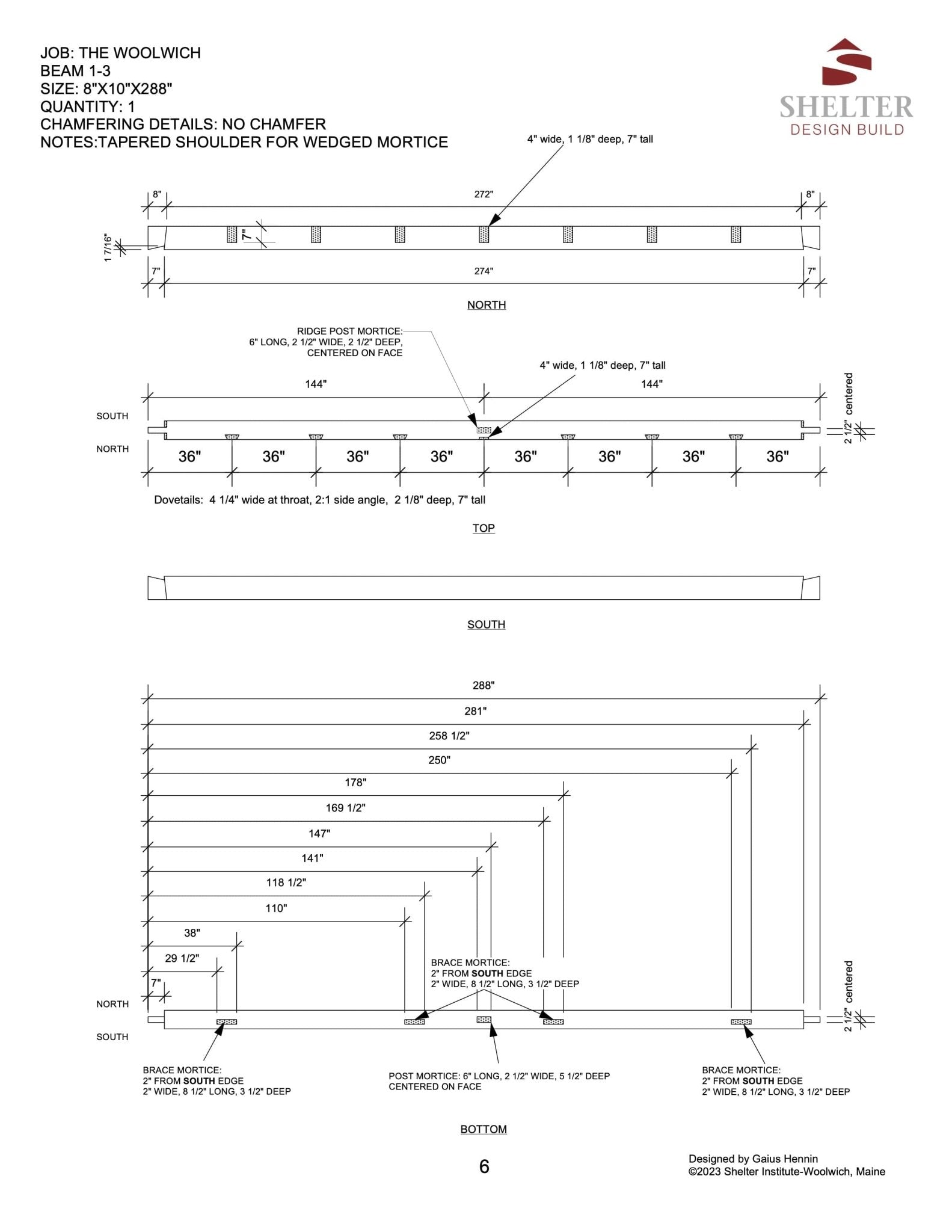

Technical drawing of The Woolwich 24x24: Timber Frame Plan & Cut Sheet Package by Shelter Institute shows a 24-ft wood ridge beam with labeled dimensions, mortise placements, brace notches, chamfering details, and top/north/south/bottom view text.

The Woolwich 24x24: Timber Frame Plan & Cut Sheet Package

$349.99 USD /
Subscription -

This is our classic kit frame reinforced with a ridge beam.

Specifications
Over All Height: 24-Ft
Width: 24-Ft
Length 24-Ft
Kneewall: 2-Ft
First Floor Clearance: 9-Ft 4-in
